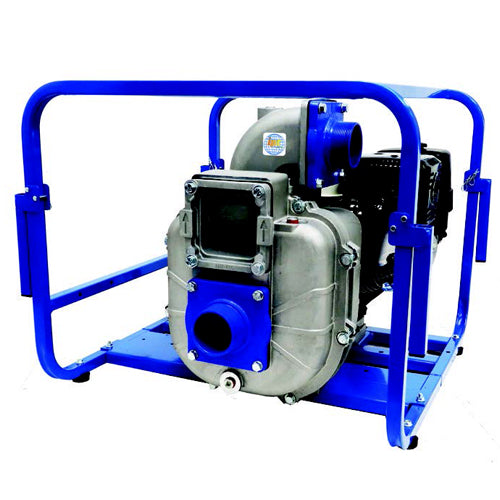

4HY23HR AMT Self-Priming High Pressure Hydroseeding Pump (23 HP, 4" Discharge, Honda GX690 23HP Driver, 10.5 Hr Run Time, 15 Gal Tank, Elect Start)
4HY23HR AMT Self-Priming High Pressure Hydroseeding Pump (23 HP, 4" Discharge, Honda GX690 23HP Driver, 10.5 Hr Run Time, 15 Gal Tank, Elect Start)
SKU:4HY23HR
Regular price
$7,287.66 USD
Regular price
$11,223.00 USD
Sale price
$7,287.66 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
Couldn't load pickup availability
AMT 4HY23HR, 4" High Pressure Hydroseeding Pump Type, 23 HP, 4" Discharge, Honda GX690 23HP Driver, 10.5 Run Time (HR.),
| Applications | |
| The AMT IPT line of Self-Priming High Pressure Pumps, also known as Hydroseeder Pumps, delivers both excellent pressure and flow for many applications including, but not limited to: general dewatering, agricultural spraying, hydroseeding, washdown, fire protection, and irrigation. These single stage centrifugal pumps are sand cast aluminum construction with cast iron wear parts, male NPT ports, and EPDM/EPR Elastomers. They are available with gasoline engines, offered in both 3 and 4 models, and come standard with a heavy duty steel frame, suction strainer, and designed for easy maintenance with servicing tool included. | |
| Features | |
| EPDM/EPR Mechanical Seal, O-Rings, and Gaskets. | |
| Convertible High or Low Suction Port for Improved Efficiency Dependent on Self- Priming or Flooded Applications | |
| Built-In EPDM Flapper/Check Valve Permits Priming up to 20' | |
| Discharge Port Rotates 180 Increments | |
| Available with Honda E-Start Gasoline Engine. | |
| INCLUDES: Servicing Tool, Suction Strainer, and Heavy Duty Steel Frame with Battery Tray Included | |
| Optional High Pressure Hose Kit or Wheel Kit Available. | |
| * See Support Documents for GPM, TDH AND PSI Curve chart. | |
Specifications | |
Brand |
AMT |
Catalog Number |
4HY23HR |
Type |
4" High Pressure Hydroseeding Pump |
Series |
Engine Driven Pumps |
HP |
23 |
Discharge |
4" |
Driver |
Honda GX690 23HP |
Oil Alert |
Included |
12VDC Electric Start |
Included (Battery not Included) |
Tank Size (Gal/Ltr) |
15/56.8 |
Run Time (HR.) |
10.5 |
Ship Wt. (lbs.) |
240 |
Length |
49.7" |
Width |
29.5" |
Height |
25.1" |
Construction |
Sand Cast Aluminum |
Heavy Duty Steel Roll Frame |
Included |
Battery Tray |
Included |
High Pressure Hose Kit or Wheel Kit |
Optional (Not Included) |
Max Solids Handling |
up to 1" |
Max Temp |
180 F |
Notes |
See Support Documents |
Support Documents (pdf) |
