AMT

SKU:3HY13HR

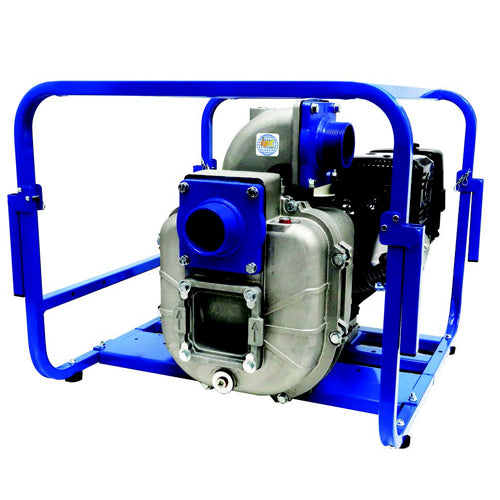

AMT 3HY13HR, 3" High Pressure Hydroseeding Pump Type, 13 HP, 3" Discharge, Honda GX390 Driver, 2.5 Run Time (HR.)

Applications
The AMT IPT line of Self-Priming High Pressure Pumps, also known as Hydroseeder Pumps, delivers both excellent pressure and flow for many applications including, but not limited to: general dewatering, agricultural spraying, hydroseeding, washdown, fire protection, and irrigation. These single stage centrifugal pumps are sand cast aluminum construction with cast iron wear parts, male NPT ports, and EPDM/EPR Elastomers. They are available with gasoline engines, offered in both 3 and 4 models, and come standard with a heavy duty steel frame, suction strainer, and designed for easy maintenance with servicing tool included.
Features
EPDM/EPR Mechanical Seal, O-Rings, and Gaskets.
Convertible High or Low Suction Port for Improved Efficiency Dependent on Self- Priming or Flooded Applications
Built-In EPDM Flapper/Check Valve Permits Priming up to 20'
Discharge Port Rotates 180 Increments
Available with Honda E-Start Gasoline Engine.
INCLUDES: Servicing Tool, Suction Strainer, and Heavy Duty Steel Frame with Battery Tray Included
Optional High Pressure Hose Kit or Wheel Kit Available.
* See Support Documents for GPM, TDH AND PSI Curve chart.

Specifications
Brand	AMT
Catalog Number	3HY13HR
Type	3" High Pressure Hydroseeding Pump
Series	Engine Driven Pumps
HP	13
Discharge	3"
Driver	Honda GX390
Oil Alert	Included
12VDC Electric Start	Included (Battery not Included)
Tank Size (Gal/Ltr)	1.6/6.1
Run Time (HR.)	2.5
Ship Wt. (lbs.)	175
Length	31"
Width	29.5"
Height	25.1"
Construction	Sand Cast Aluminum
Heavy Duty Steel Roll Frame	Included
Battery Tray	Included
High Pressure Hose Kit or Wheel Kit	Optional (Not Included)
Max Solids Handling	up to 5/8"
Max Temp	180 F
Notes	See Support Documents
