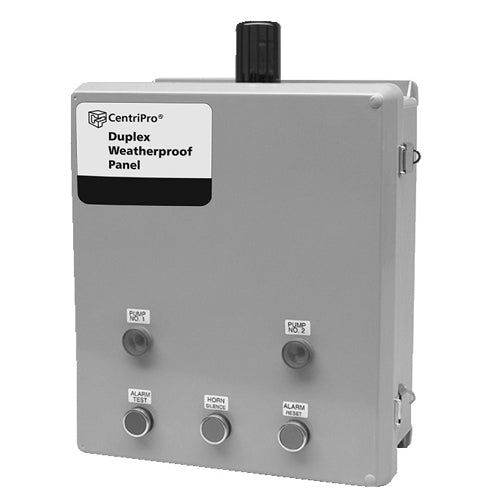

D34063 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (4.0 - 6.3 AMP Range, Three Phase, NEMA 4X Enclosure)
D34063 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (4.0 - 6.3 AMP Range, Three Phase, NEMA 4X Enclosure)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:D34063
Precio habitual
$3,856.00 USD
Precio habitual
$5,393.00 USD
Precio de oferta
$3,856.00 USD
Precio unitario
/
por
Los gastos de envío se calculan en la pantalla de pago.
No se pudo cargar la disponibilidad de retiro
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
Goulds Pumps D34063, Duplex NEMA 4X Weatherproof Panels , 4.0 - 6.3 AMP / HP Range, Three Phase, NEMA 4X Enclosure Type,
| Applications |
| Superior quality duplex liquid-level controller, automatically controls alternation for two pump operation. High-level alarm warning designed for a variety of sump, effluent, sewage and water transfer applications. |
| Features |
| NEMA 4X, 30 watt, flashing red light and alarm horn 95db. |
| NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware. |
| Entire unit is UL and CUL listed. |
| Single Phase Field adjustable for 115, 208 or 230V, 60 Hz. 2 pump circuit breakers. |
| Three Phase Field adjustable for 208/230 /460/575V, 60 Hz. |
| 115V control circuit transformer. |
| 2 adjustable motor overload protectors. |
| Heaters not required. |
| Provides fully automatic operation for two pumps. |
| Solid state pump alternator circuit displays float status for ease of installation and trouble shooting. |
| Accepts single or dual power feed. |
|
Specifications |
|
|
Brand
|
Goulds Pumps
|
|
Catalog Number
|
D34063
|
|
Type
|
Duplex NEMA 4X Weatherproof Panels
|
|
Series
|
SES
|
|
AMP / HP Range
|
4.0 - 6.3
|
|
Phase
|
Three
|
|
Application
|
Indoor / Outdoor
|
|
Enclosure Type
|
NEMA 4X
|
|
Enclosure Material
|
Fiberglass
|
|
Hardware Material
|
Stainless Steel
|
|
Indicator Lights
|
Alarm/Run
|
|
Voltage
|
208/230 /460/575V
|
|
Notes
|
See Support Documents
|
|
Support Documents (pdf)
|
||||
|
|
||||
