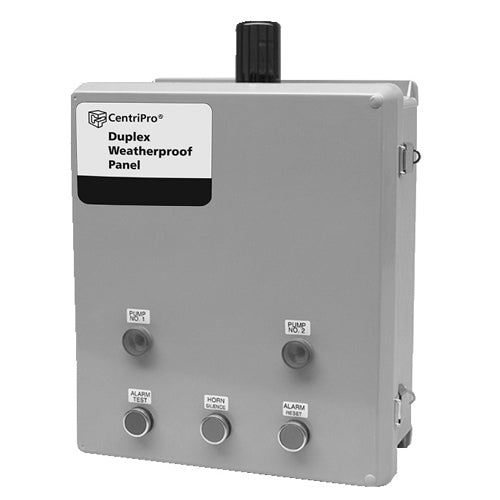

• D32232 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (22 - 32 AMP Range, Three Phase, NEMA 4X Enclosure)
1 1

Goulds Pumps

D32232 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (22 - 32 AMP Range, Three Phase, NEMA 4X Enclosure)

D32232 Goulds Pumps Duplex NEMA 4X Weatherproof Panel (22 - 32 AMP Range, Three Phase, NEMA 4X Enclosure)

D32232

$4,646.07 USD
$6,498.00 USD $4,646.07 USD
Oferta Agotado
Los gastos de envío se calculan en la pantalla de pago.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Goulds Pumps D32232, Duplex NEMA 4X Weatherproof Panels , 22 - 32 AMP / HP Range, Three Phase, NEMA 4X Enclosure Type,

Applications
Superior quality duplex liquid-level controller, automatically controls alternation for two pump operation. High-level alarm warning designed for a variety of sump, effluent, sewage and water transfer applications.
Features
NEMA 4X, 30 watt, flashing red light and alarm horn 95db.
NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware.
Entire unit is UL and CUL listed.
Single Phase Field adjustable for 115, 208 or 230V, 60 Hz. 2 pump circuit breakers.
Three Phase Field adjustable for 208/230 /460/575V, 60 Hz.
115V control circuit transformer.
2 adjustable motor overload protectors.
Heaters not required.
Provides fully automatic operation for two pumps.
Solid state pump alternator circuit displays float status for ease of installation and trouble shooting.
Accepts single or dual power feed.

Specifications

Brand
Goulds Pumps
Catalog Number
D32232
Type
Duplex NEMA 4X Weatherproof Panels
Series
SES
AMP / HP Range
22 - 32
Phase
Three
Application
Indoor / Outdoor
Enclosure Type
NEMA 4X
Enclosure Material
Fiberglass
Hardware Material
Stainless Steel
Indicator Lights
Alarm/Run
Voltage
208/230 /460/575V
Notes
See Support Documents

Support Documents (pdf)
Ver todos los detalles
