Goulds Drives & Controls

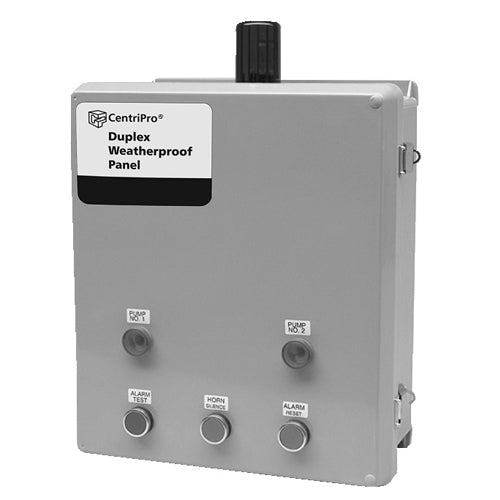

D32025 Goulds Duplex NEMA 4X Weatherproof Panel (20 - 25 AMP Range, Three Phase, NEMA 4X Enclosure)
D32025 Goulds Duplex NEMA 4X Weatherproof Panel (20 - 25 AMP Range, Three Phase, NEMA 4X Enclosure)
[COUNT] shoppers are looking at this right now
No reviews
SKU:D32025
Precio habitual
$3,972.54 USD
Precio habitual
$5,556.00 USD
Precio de oferta
$3,972.54 USD
Los gastos de envío se calculan en la pantalla de pago.
Cantidad
View Price in Cart
No se pudo cargar la disponibilidad de retiro
Goulds Pumps D32025, Duplex NEMA 4X Weatherproof Panels , 20 - 25 AMP / HP Range, Three Phase, NEMA 4X Enclosure Type,
| Applications | |
| Superior quality duplex liquid-level controller, automatically controls alternation for two pump operation. High-level alarm warning designed for a variety of sump, effluent, sewage and water transfer applications. | |
| Features | |
| NEMA 4X, 30 watt, flashing red light and alarm horn 95db. | |
| NEMA 4X, fiberglass enclosure with gasketed, hinged door and stainless steel hardware. | |
| Entire unit is UL and CUL listed. | |
| Single Phase Field adjustable for 115, 208 or 230V, 60 Hz. 2 pump circuit breakers. | |
| Three Phase Field adjustable for 208/230 /460/575V, 60 Hz. | |
| 115V control circuit transformer. | |
| 2 adjustable motor overload protectors. | |
| Heaters not required. | |
| Provides fully automatic operation for two pumps. | |
| Solid state pump alternator circuit displays float status for ease of installation and trouble shooting. | |
| Accepts single or dual power feed. | |
Specifications | |
Brand |
Goulds Pumps |
Catalog Number |
D32025 |
Type |
Duplex NEMA 4X Weatherproof Panels |
Series |
SES |
AMP / HP Range |
20 - 25 |
Phase |
Three |
Application |
Indoor / Outdoor |
Enclosure Type |
NEMA 4X |
Enclosure Material |
Fiberglass |
Hardware Material |
Stainless Steel |
Indicator Lights |
Alarm/Run |
Voltage |
208/230 /460/575V |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
