U.S. Motors

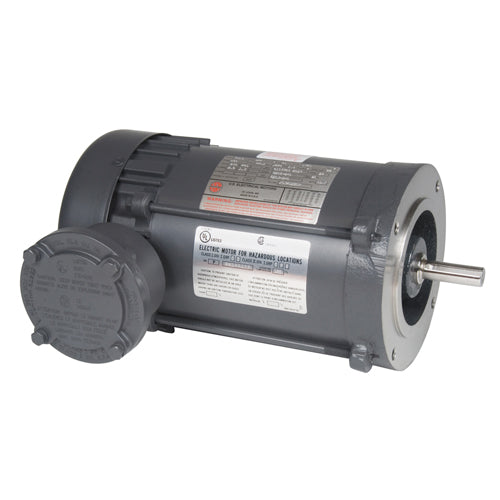

XS34SA2ACR U.S. Motors Duel and Single Label C Face Hazardous Location Motor (3/4 HP, 230/460 Voltage, Three Phase, 1800 RPM)

XS34SA2ACR U.S. Motors Duel and Single Label C Face Hazardous Location Motor (3/4 HP, 230/460 Voltage, Three Phase, 1800 RPM)

XS34SA2ACR

$568.37 USD
$568.37 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: XS34SA2ACR, HP: 3/4, RPM: 1800, Voltage: 230/460, Phase: Three, Frame: 56C, C Dim (inches): 13.5, Class II Group: EFG, Full Load Eff.: -, Class I Group: CD,

Applications
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group.
Features
UL Listed & CSA Certified Lifting Provisions, 180 Frame & Up
Cast Iron Inner Bearing Caps (180 Frame & Larger) Conversion Kits: Cast Iron Fan Cover(180 Frame & Up)
40C Ambient, NEMA Design B Performance (04) Sealed Bearings 56-140, Shielded 180 Frame & Up
Regreasable Bearings, 180 Frame & Up Class, Group & Temp Code as Noted Below

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
XS34SA2ACR
HP
3/4
RPM
1800
Voltage
230/460
Phase
Three
Frame
56C
Full Load Amps
2.6/1.3
C Dim (inches)
13.5
Class II Group
EFG
Full Load Eff.
-
Class I Group
CD
Temp Code
T3B
Mount
Footless
Apx. Wt. (lbs.)
36

Support Documents (pdf)

Product Literature
View full details
