U.S. Motors

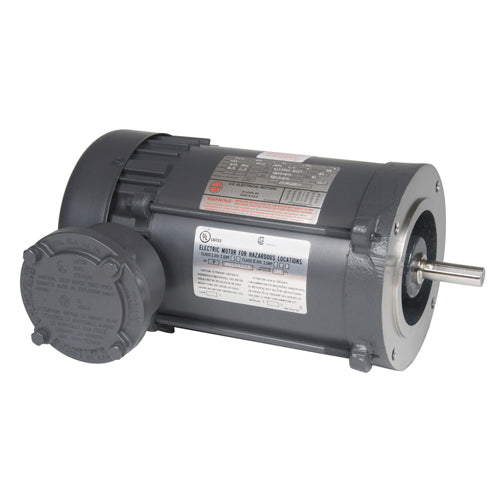

XS13SA2DCR U.S. Motors C-Face Hazardous Location Motor (1/3 HP, 208-230/460V, 3PH)

XS13SA2DCR U.S. Motors C-Face Hazardous Location Motor (1/3 HP, 208-230/460V, 3PH)

[COUNT] shoppers are looking at this right now

XS13SA2DCR

$423.21 USD
$0.00 USD $423.21 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors: XS13SA2DCR, HP: 1/3, RPM: 1800, Voltage: 208-230/460, Phase: Three, Frame: 56C, C Dim (inches): 13.3, Class II Group: EFG, Full Load Eff.: -, Class I Group: CD,
Applications
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group.
Features
UL Listed & CSA Certified Lifting Provisions, 180 Frame & Up
Cast Iron Inner Bearing Caps (180 Frame & Larger) Conversion Kits: Cast Iron Fan Cover (180 Frame & Up)
40C Ambient, NEMA Design B Performance (04) Sealed Bearings 56-140, Shielded 180 Frame & Up
Regreasable Bearings, 180 Frame & Up Class, Group & Temp Code as Noted Below

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
XS13SA2DCR
HP
1/3
RPM
1800
Voltage
208-230/460
Phase
Three
Frame
56C
Full Load Amps
1.4-1.3/0.65
C Dim (inches)
13.3
Class II Group
EFG
Full Load Eff.
-
Class I Group
CD
Temp Code
T3C
Mount
Footless
Apx. Wt. (lbs.)
29

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
