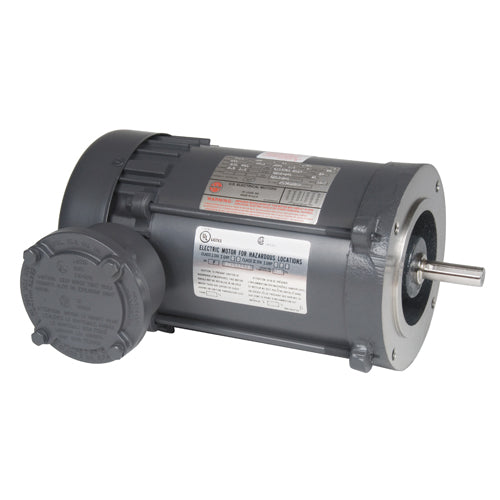

XS12CA3P U.S. Motors Hazardous Location Motor (1/2 HP, 56H Frame, 1200 RPM)
XS12CA3P U.S. Motors Hazardous Location Motor (1/2 HP, 56H Frame, 1200 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:XS12CA3P
Regular price
$1,034.89 USD
Regular price
Sale price
$1,034.89 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson XS12CA3P, HP: 1/2, RPM: 1200, Volts: 115/230, Frame: 56H, "C" Dim. : 14.2, Phase: Single, Motor Mount : Footed, Enclosure: TEFC, Explosion Proof Motor
| Applications |
| For use on air compressors, pumps, conveyors, blowers and general industrial equipment located in hazardous areas. |
| Features |
| UL Listed & CSA Certified; Temp Code T3C; Class B Insulation; Continuous Duty; Totally Enclosed Fan Cooled Except Where Noted; 40C Ambient Rated; F1 Assembly |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Single Phase Hazardous Location Motor |
Model Number |
XS12CA3P |
HP |
1/2 |
RPM |
1200 |
Volts |
115/230 |
SF |
1 |
Frame |
56H |
Full Load Amps |
10.0/5.0 |
"C" Dim. |
14.2 |
Apx. Wt. (lb) |
40 |
Speed |
Single |
Phase |
Single |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Single Phase Hazardous Location Motor |
Temp Code |
T3C |
Notes |
Class I (Group C & D), Class II (Group E, F & G) |
