Baldor

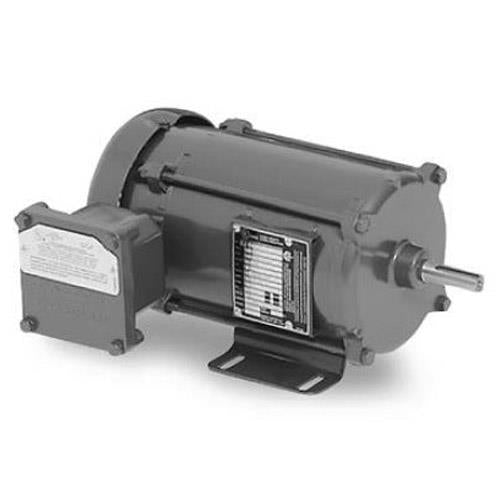

XL18322T Baldor Explosion Proof Motor (3 HP, 115/230 Volts, 184T Frame, 3600 RPM)

XL18322T Baldor Explosion Proof Motor (3 HP, 115/230 Volts, 184T Frame, 3600 RPM)

[COUNT] shoppers are looking at this right now

XL18322T

$2,579.25 USD
$3,530.00 USD $2,579.25 USD
Sale Sold out
Shipping calculated at checkout.

Baldor XL18322T, Explosion Proof Motors , 3 HP, 115/230 Volts, 184T NEMA Frame, 3600 RPM,

Applications
Customer specified Division 1 hazardous areas, Pumps, fans andconveyors, Fixed speed operation
Features
Robust steel and cast iron frame designs
IP54 ingress protection
1.15 service factor on 143T frame and larger
Auto thermal overload (<1 Hp), normally closed thermostats (>1 Hp)
Threaded lead inlet
Low noise vibration dampening bases
Caution: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. These explosion-proof motors are not suitable for use with adjustable speed drives. Inverter Duty explosion-proof motors must be used.

Specifications

Brand
Baldor
Catalog Number
XL18322T
Type
Explosion Proof Single Phase Motors
Series
Explosion Proof Motors
Model
XL18322T
HP
3
Volts
115/230
NEMA Frame
184T
RPM
3600
Temp Code
T2C
Symbol
XP1
C Dim.
17.42
Approx Weight (lbs)
84
Full Load Efficiency
76
Full Load Amps
14.5

Support Documents (pdf)
