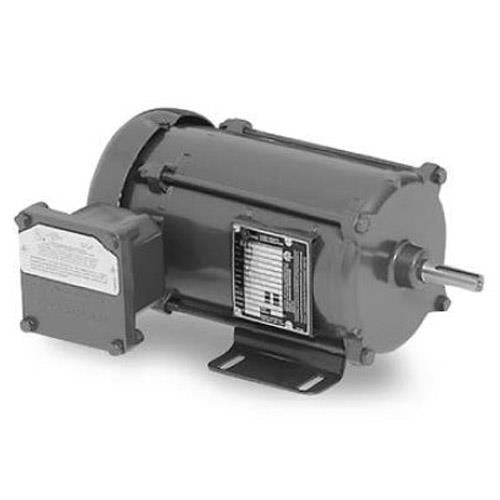

XL050745A Baldor Explosion Proof Motor (3/4 HP, 115/230 Volts, 56 Frame, 1800 RPM)

XL050745A Baldor Explosion Proof Motor (3/4 HP, 115/230 Volts, 56 Frame, 1800 RPM)

[COUNT] shoppers are looking at this right now

XL050745A

$1,212.91 USD
$1,660.00 USD $1,212.91 USD
Sale Sold out
Shipping calculated at checkout.

Baldor XL050745A, Explosion Proof Motors , 3/4 HP, 115/230 Volts, 56 NEMA Frame, 1800 RPM,
Applications
Customer specified Division 1 hazardous areas, Pumps, fans and conveyors, Fixed speed operation
Features
Robust steel and cast iron frame designs
IP54 ingress protection
1.15 service factor on 143T frame and larger
Auto thermal overload (<1 hp="" normally="" closed="" thermostats="">1 Hp)
Threaded lead inlet
Low noise vibration dampening bases
Caution: Explosion-proof motors have a tight fit between mating parts to ensure the integrity of the explosion-proof enclosure. This can lead to an accumulation of moisture inside the motors due to condensation. If internal condensation buildup is a concern for your XP motor application, select a motor that includes UL listed breather drain. These explosion-proof motors are not suitable for use with adjustable speed drives. Inverter Duty explosion-proof motors must be used.

Specifications

Brand
Baldor
Catalog Number
XL050745A
Type
Explosion Proof Single Phase Motors
Series
Explosion Proof Motors
Model
XL050745A
HP
3/4
Volts
115/230
NEMA Frame
56
RPM
1800
Phase
Single
Temp Code
T4
Symbol
XP1
C Dim.
15.17
Approx Weight (lbs)
53
Full Load Efficiency
66
Full Load Amps
5.3

Support Documents (pdf)
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
