U.S. Motors

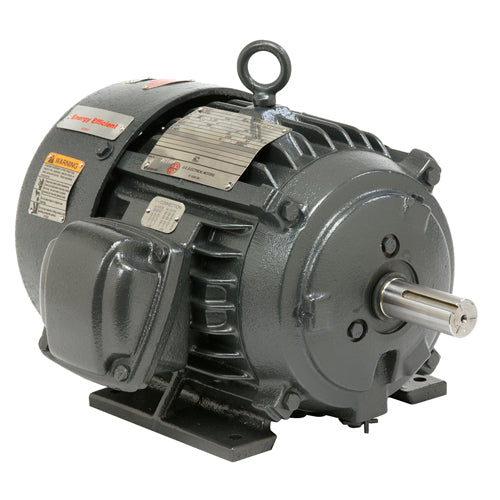

X50P3B U.S. Motors NEMA Premium, Dual Label Motor (50 HP, 230/460 Voltage, Three Phase, 1200 RPM)
X50P3B U.S. Motors NEMA Premium, Dual Label Motor (50 HP, 230/460 Voltage, Three Phase, 1200 RPM)
SKU:X50P3B
Regular price
$10,652.91 USD
Regular price
Sale price
$10,652.91 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: X50P3B, HP: 50, RPM: 1200, Voltage: 230/460, Phase: Three, Temp Code: T3C, SF: 1, C Dim. (inches): 32.3, Full Load Amps: 115/57, Full Load Eff.: 94.1,
| Applications | |
| For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
| Features | |
| UL Listed & CSA Certified | |
| Cast Iron Inner Bearing Caps (180 Frame & Larger) | |
| 40C Ambient, NEMA Design B Performance | |
| Regreasable Bearings, 180 Frame & Up | |
| Lifting Provisions, 180 Frame & Up | |
| Conversion Kits: Cast Iron Fan Cover (180 Frame & Up) | |
| Sealed Bearings 56-140, Shielded 180 Frame & Up | |
| Class, Group & Temp Code as Noted Below | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
X50P3B |
HP |
50 |
RPM |
1200 |
Voltage |
230/460 |
Phase |
Three |
Temp Code |
T3C |
Frame |
365T |
SF |
1 |
C Dim. (inches) |
32.3 |
Full Load Amps |
115/57 |
Full Load Eff. |
94.1 |
Enclosure |
TEFC |
Class I Group |
CD |
Apx. Wt. (lbs.) |
870 |
Support Documents (pdf) | ||||
| Product Literature | ||||
