U.S. Motors

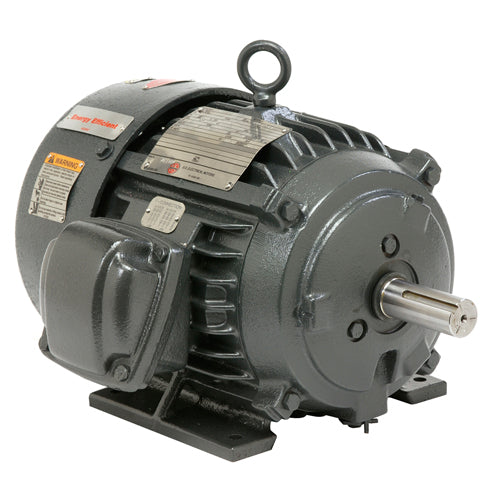

X32P2B U.S. Motors NEMA Premium, Dual Label Motor (1-1/2 HP, 230/460 Voltage, Three Phase, 1800 RPM)

X32P2B U.S. Motors NEMA Premium, Dual Label Motor (1-1/2 HP, 230/460 Voltage, Three Phase, 1800 RPM)

X32P2B

$713.20 USD
$713.20 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: X32P2B, HP: 1-1/2, RPM: 1800, Voltage: 230/460, Phase: Three, Temp Code: T3B, SF: 1, C Dim. (inches): 12.9, Full Load Amps: 4.3/2.1, Full Load Eff.: 86.5,

Applications
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group.
Features
UL Listed & CSA Certified
Cast Iron Inner Bearing Caps (180 Frame & Larger)
40C Ambient, NEMA Design B Performance
Regreasable Bearings, 180 Frame & Up
Lifting Provisions, 180 Frame & Up
Conversion Kits: Cast Iron Fan Cover (180 Frame & Up)
Sealed Bearings 56-140, Shielded 180 Frame & Up
Class, Group & Temp Code as Noted Below

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
X32P2B
HP
1-1/2
RPM
1800
Voltage
230/460
Phase
Three
Temp Code
T3B
Frame
145T
SF
1
C Dim. (inches)
12.9
Full Load Amps
4.3/2.1
Full Load Eff.
86.5
Enclosure
TEFC
Class I Group
D
Apx. Wt. (lbs.)
75

Support Documents (pdf)

Product Literature
View full details
