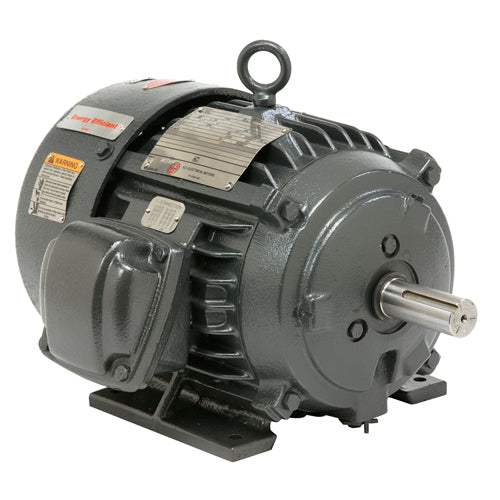

X2P2B U.S. Motors NEMA Premium, Dual Label Motor (2 HP, 230/460 Voltage, Three Phase, 1800 RPM)
X2P2B U.S. Motors NEMA Premium, Dual Label Motor (2 HP, 230/460 Voltage, Three Phase, 1800 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:X2P2B
Regular price
$710.45 USD
Regular price
Sale price
$710.45 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
U.S. Motors: X2P2B, HP: 2, RPM: 1800, Voltage: 230/460, Phase: Three, Temp Code: T3B, SF: 1, C Dim. (inches): 12.9, Full Load Amps: 5.6/2.8, Full Load Eff.: 86.5,
| Applications | |
| For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
| Features | |
| UL Listed & CSA Certified | |
| Cast Iron Inner Bearing Caps (180 Frame & Larger) | |
| 40C Ambient, NEMA Design B Performance | |
| Regreasable Bearings, 180 Frame & Up | |
| Lifting Provisions, 180 Frame & Up | |
| Conversion Kits: Cast Iron Fan Cover (180 Frame & Up) | |
| Sealed Bearings 56-140, Shielded 180 Frame & Up | |
| Class, Group & Temp Code as Noted Below | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
X2P2B |
HP |
2 |
RPM |
1800 |
Voltage |
230/460 |
Phase |
Three |
Temp Code |
T3B |
Frame |
145T |
SF |
1 |
C Dim. (inches) |
12.9 |
Full Load Amps |
5.6/2.8 |
Full Load Eff. |
86.5 |
Enclosure |
TEFC |
Class I Group |
D |
Apx. Wt. (lbs.) |
75 |
Support Documents (pdf) | ||||
| Product Literature | ||||
