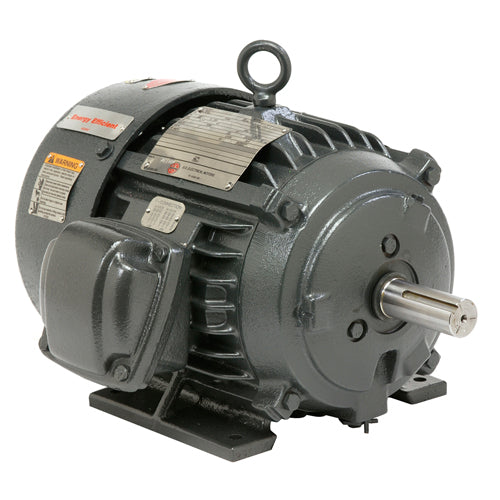

X20P1B U.S. Motors NEMA Premium, Dual Label Motor (20 HP, 230/460 Voltage, Three Phase, 3600 RPM)
X20P1B U.S. Motors NEMA Premium, Dual Label Motor (20 HP, 230/460 Voltage, Three Phase, 3600 RPM)
SKU:X20P1B
Regular price
$3,077.85 USD
Regular price
Sale price
$3,077.85 USD
Unit price
/
per
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
U.S. Motors: X20P1B, HP: 20, RPM: 3600, Voltage: 230/460, Phase: Three, Temp Code: T3C, SF: 1, C Dim. (inches): 25.3, Full Load Amps: 46/23.1, Full Load Eff.: 91,
Applications | |
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
Features | |
UL Listed & CSA Certified | |
Cast Iron Inner Bearing Caps (180 Frame & Larger) | |
40C Ambient, NEMA Design B Performance | |
Regreasable Bearings, 180 Frame & Up | |
Lifting Provisions, 180 Frame & Up | |
Conversion Kits: Cast Iron Fan Cover (180 Frame & Up) | |
Sealed Bearings 56-140, Shielded 180 Frame & Up | |
Class, Group & Temp Code as Noted Below | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
X20P1B |
HP |
20 |
RPM |
3600 |
Voltage |
230/460 |
Phase |
Three |
Temp Code |
T3C |
Frame |
256T |
SF |
1 |
C Dim. (inches) |
25.3 |
Full Load Amps |
46/23.1 |
Full Load Eff. |
91 |
Enclosure |
TEFC |
Class I Group |
CD |
Apx. Wt. (lbs.) |
375 |
Support Documents (pdf) | ||||
Product Literature |
