U.S. Motors

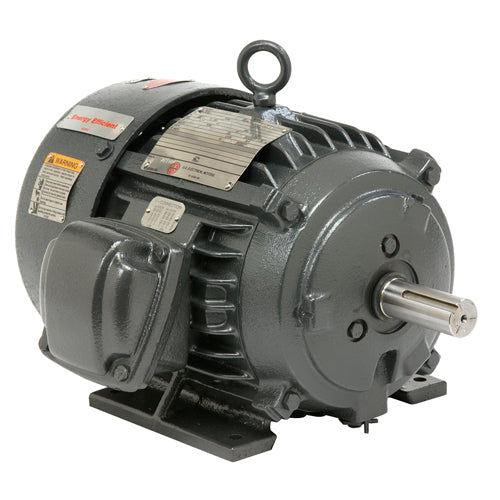

X200P2C U.S. Motors NEMA Premium, Dual Label Motor (200 HP, 460 Voltage, Three Phase, 1800 RPM)

X200P2C U.S. Motors NEMA Premium, Dual Label Motor (200 HP, 460 Voltage, Three Phase, 1800 RPM)

[COUNT] shoppers are looking at this right now

X200P2C

$19,639.15 USD
$0.00 USD $19,639.15 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors: X200P2C, HP: 200, RPM: 1800, Voltage: 460, Phase: Three, Temp Code: T3B, SF: 1, C Dim. (inches): 49.4, Full Load Amps: 225, Full Load Eff.: 96.2,
Applications
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group.
Features
UL Listed & CSA Certified
Cast Iron Inner Bearing Caps (180 Frame & Larger)
40C Ambient, NEMA Design B Performance
Regreasable Bearings, 180 Frame & Up
Lifting Provisions, 180 Frame & Up
Conversion Kits: Cast Iron Fan Cover (180 Frame & Up)
Sealed Bearings 56-140, Shielded 180 Frame & Up
Class, Group & Temp Code as Noted Below

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
X200P2C
HP
200
RPM
1800
Voltage
460
Phase
Three
Temp Code
T3B
Frame
447T
SF
1
C Dim. (inches)
49.4
Full Load Amps
225
Full Load Eff.
96.2
Enclosure
TEFC
Class I Group
D
Apx. Wt. (lbs.)
2200

Support Documents (pdf)

Product Literature
  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
