U.S. Motors

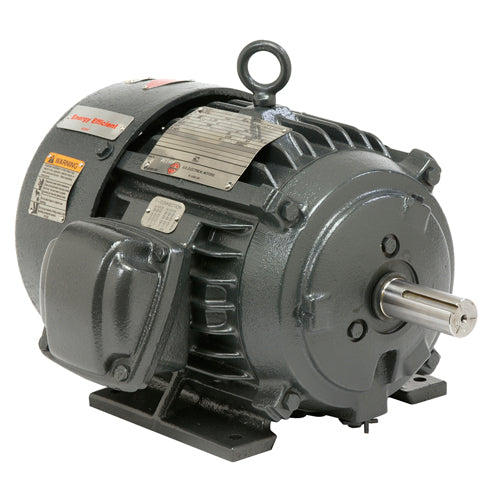

X150P2C U.S. Motors NEMA Premium, Dual Label Motor (150 HP, 460 Voltage, Three Phase, 1800 RPM)
X150P2C U.S. Motors NEMA Premium, Dual Label Motor (150 HP, 460 Voltage, Three Phase, 1800 RPM)
SKU:X150P2C
Regular price
$18,762.84 USD
Regular price
Sale price
$18,762.84 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors: X150P2C, HP: 150, RPM: 1800, Voltage: 460, Phase: Three, Temp Code: T3B, SF: 1, C Dim. (inches): 45.4, Full Load Amps: 171, Full Load Eff.: 95.8,
| Applications | |
| For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group. | |
| Features | |
| UL Listed & CSA Certified | |
| Cast Iron Inner Bearing Caps (180 Frame & Larger) | |
| 40C Ambient, NEMA Design B Performance | |
| Regreasable Bearings, 180 Frame & Up | |
| Lifting Provisions, 180 Frame & Up | |
| Conversion Kits: Cast Iron Fan Cover (180 Frame & Up) | |
| Sealed Bearings 56-140, Shielded 180 Frame & Up | |
| Class, Group & Temp Code as Noted Below | |
Tech Specs | |
Brand |
U.S. Motors/Emerson |
U.S. Motors Model Number |
X150P2C |
HP |
150 |
RPM |
1800 |
Voltage |
460 |
Phase |
Three |
Temp Code |
T3B |
Frame |
445T |
SF |
1 |
C Dim. (inches) |
45.4 |
Full Load Amps |
171 |
Full Load Eff. |
95.8 |
Enclosure |
TEFC |
Class I Group |
D |
Apx. Wt. (lbs.) |
1625 |
Support Documents (pdf) | ||||
| Product Literature | ||||
