U.S. Motors

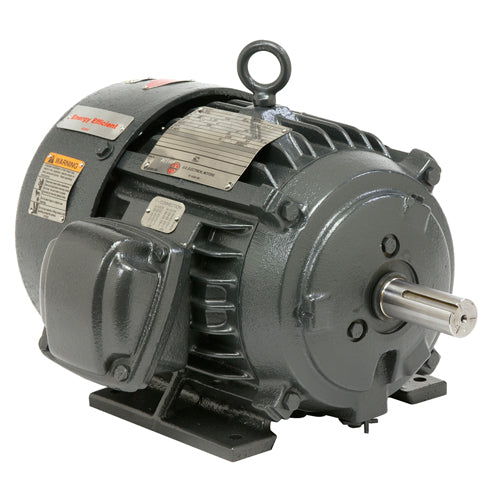

X125P2C U.S. Motors NEMA Premium, Dual Label Motor (125 HP, 460 Voltage, Three Phase, 1800 RPM)

X125P2C U.S. Motors NEMA Premium, Dual Label Motor (125 HP, 460 Voltage, Three Phase, 1800 RPM)

X125P2C

$14,820.53 USD
$14,820.53 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

U.S. Motors: X125P2C, HP: 125, RPM: 1800, Voltage: 460, Phase: Three, Temp Code: T3B, SF: 1, C Dim. (inches): 45.4, Full Load Amps: 140, Full Load Eff.: 95.4,

Applications
For pumps, fans, compressors, conveyors and tools located in hazardous locations as defined by Class and Group.
Features
UL Listed & CSA Certified
Cast Iron Inner Bearing Caps (180 Frame & Larger)
40C Ambient, NEMA Design B Performance
Regreasable Bearings, 180 Frame & Up
Lifting Provisions, 180 Frame & Up
Conversion Kits: Cast Iron Fan Cover (180 Frame & Up)
Sealed Bearings 56-140, Shielded 180 Frame & Up
Class, Group & Temp Code as Noted Below

Tech Specs

Brand
U.S. Motors/Emerson
U.S. Motors Model Number
X125P2C
HP
125
RPM
1800
Voltage
460
Phase
Three
Temp Code
T3B
Frame
444T
SF
1
C Dim. (inches)
45.4
Full Load Amps
140
Full Load Eff.
95.4
Enclosure
TEFC
Class I Group
D
Apx. Wt. (lbs.)
1560
