U.S. Motors

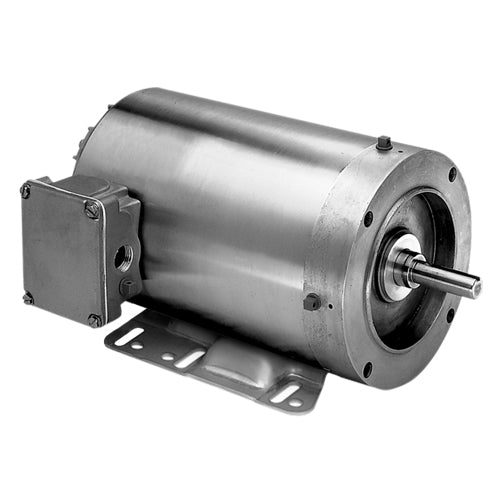

WDP34S2ACR U.S. Motors Washdown Motor (3/4 HP, 56C Frame, C-Face , 1800 RPM)

WDP34S2ACR U.S. Motors Washdown Motor (3/4 HP, 56C Frame, C-Face , 1800 RPM)

[COUNT] shoppers are looking at this right now

WDP34S2ACR

$773.03 USD
$0.00 USD $773.03 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson WDP34S2ACR, HP: 3/4, RPM: 1800, Volts: 208-230/460, Frame: 56C, "C" Dim. : 12.2, Full Load Efficiency : 80, Phase: Three, Motor Mount : Footless, Enclosure: TENV, Water Proof Motor

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B

Tech Specs.

Brand
U.S. Motors/Emerson Paint Free Washdown Motor
Model Number
WDP34S2ACR
HP
3/4
RPM
1800
Volts
208-230/460
SF
1.15
Frame
56C
Full Load Amps
2.8-2.7/1.3
"C" Dim.
12.2
Apx. Wt. (lb)
37
Full Load Efficiency
80
Phase
Three
Motor Mount
Footless
Enclosure
TENV
Type
Three Phase Paint Free Washdown Motor
Motor Face
C-Face
