U.S. Motors

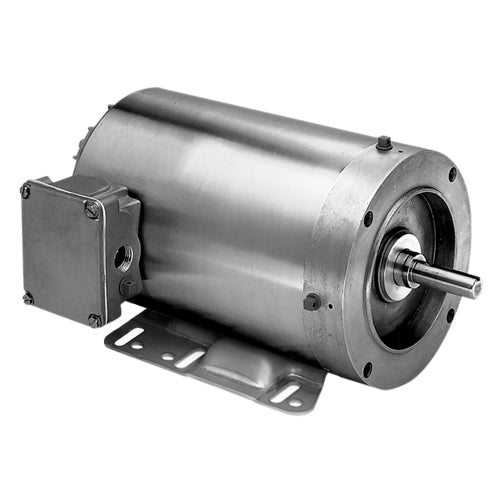

WDP1S3DCR U.S. Motors Washdown Motor (1 HP, 56C Frame, C-Face , 1200 RPM)
WDP1S3DCR U.S. Motors Washdown Motor (1 HP, 56C Frame, C-Face , 1200 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:WDP1S3DCR
Regular price
$699.63 USD
Regular price
Sale price
$699.63 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson WDP1S3DCR, HP: 1, RPM: 1200, Volts: 208-230/460, Frame: 56C, "C" Dim. : 13.8, Full Load Efficiency : 85.5, Phase: Three, Motor Mount : Footless, Enclosure: TENV, Water Proof Motor
| Applications |
| Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. |
| Features |
| Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Paint Free Washdown Motor |
Model Number |
WDP1S3DCR |
HP |
1 |
RPM |
1200 |
Volts |
208-230/460 |
SF |
1.15 |
Frame |
56C |
Full Load Amps |
4.7-4.8/2.4 |
"C" Dim. |
13.8 |
Apx. Wt. (lb) |
32 |
Full Load Efficiency |
85.5 |
Phase |
Three |
Motor Mount |
Footless |
Enclosure |
TENV |
Type |
Three Phase Paint Free Washdown Motor |
Motor Face |
C-Face |
