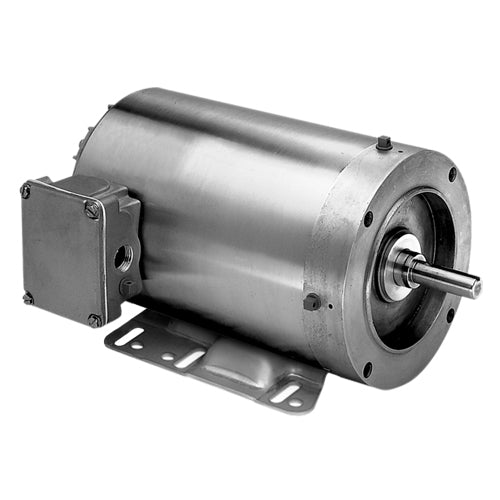

WDP1S2AC U.S. Motors Washdown Motor (1 HP, 145TC Frame, C-Face , 1800 RPM)
WDP1S2AC U.S. Motors Washdown Motor (1 HP, 145TC Frame, C-Face , 1800 RPM)
No reviews
SKU:WDP1S2AC
Regular price
$681.76 USD
Regular price
Sale price
$681.76 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson WDP1S2AC, HP: 1, RPM: 1800, Volts: 208-230/460, Frame: 145TC, "C" Dim. : 13.8, Full Load Efficiency : 85.5, Phase: Three, Motor Mount : Footed , Enclosure: TENV, Water Proof Motor
| Applications |
| Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. |
| Features |
| Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Paint Free Washdown Motor |
Model Number |
WDP1S2AC |
HP |
1 |
RPM |
1800 |
Volts |
208-230/460 |
SF |
1.15 |
Frame |
145TC |
Full Load Amps |
3.5-3.4/1.7 |
"C" Dim. |
13.8 |
Apx. Wt. (lb) |
32 |
Full Load Efficiency |
85.5 |
Phase |
Three |
Motor Mount |
Footed |
Enclosure |
TENV |
Type |
Three Phase Paint Free Washdown Motor |
Motor Face |
C-Face |
