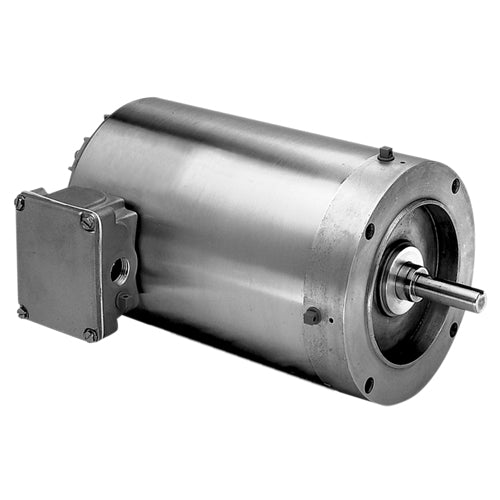

WDP1P2DFCR US Motor Washdown Duty Motor (1HP, TENV, 1725 RPM)
WDP1P2DFCR US Motor Washdown Duty Motor (1HP, TENV, 1725 RPM)
SKU:WDP1P2DFCR
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.
* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.
** Taxes may be applied after an order is placed.
CAT # WDP1P2DFCR
Model_Number: P063ANA1439015B
PRODUCT NAME: 1 HP - TENV - 1725
PHASETYPE: 3_POLYPHASE
MOTOR ENCLOSURE: TENV
HORSEPOWER: 1
KILOWATTS: 0.8
POLES: 4
NUMBER SPEEDS: 1
RPM: 1725
RPM 2: 1425
HERTZ: 60
HERTZ 2: 50
VOLTS PRIMARY: 230/460 & 190/380 V
VOLTS : 230
VOLTS 2: 460
VOLTS 3: 190
VOLTS 4: 380
FRME : 56
SHAFT CODE: C
STATOR DIAMETER: 6.3
STACK: 3.25
MOUNTING: C-FACE
MOTOR TYPE: WEREF
OPPOSITE END BEARING: 6203
SHAFT END BEARING: 6205
AMBIENT: 40
ROTATION: CW/CCW
SERVICE FACTOR: 1.15
SHIPPING WEIGHT: 31
THERMAL PROTECTION: NONE
BREAKDOWN TORQUE: 240.1
BREAKDOWN TORQUE UOM: OZFT
LOCKED ROTOR TORQUE: 160.4
LOCKED ROTOR TORQUE UOM: OZFT
INSULATION CLASS: F
KVA CODE LETTER: M
LOCKED ROTOR AMPS: 23.29
NEMA NOMINAL EFFICIENCY: 85.5
FULL LOAD AMPS PRIMARY: 3.5-3.4/1.7
SERVICE FACTOR AMPS PRIMARY: 3.9-3.7/1.8
