U.S. Motors

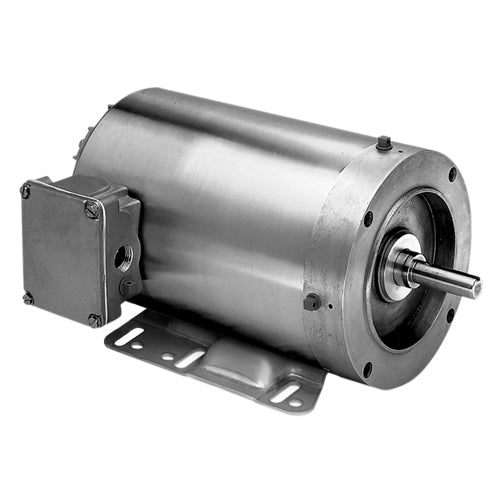

WDP12S2AHC U.S. Motors Washdown Motor (1/2 HP, 56HC Frame, C-Face , 1800 RPM)

WDP12S2AHC U.S. Motors Washdown Motor (1/2 HP, 56HC Frame, C-Face , 1800 RPM)

[COUNT] shoppers are looking at this right now

WDP12S2AHC

$595.44 USD
$0.00 USD $595.44 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson WDP12S2AHC, HP: 1/2, RPM: 1800, Volts: 208-230/460, Frame: 56HC, "C" Dim. : 12.2, Full Load Efficiency : 78.5, Phase: Three, Motor Mount : Footed , Enclosure: TENV, Water Proof Motor

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Inverter Grade Insulation System (Meets NEMA MG-1 Part 31); BISSC Certified; VBX Bearing Isolators By InproSeal On Drive End (Both Ends On 180-210 Frame); 303 Stainless Steel Shaft; Multiple Stainless T-Type Drains; Double Contact Sealed Ball Bearings; Laser-Etched Oversized Nameplate; RTV-Sealed Lead Exit; Moisture Resistant Gasketed Conduit Box with NPT Lead Holes; Stainless Steel Frame; Easy to Read Connection Leads; Rust Inhibitor on Rotor; 40C Ambient, NEMA Design B

Tech Specs.

Brand
U.S. Motors/Emerson Paint Free Washdown Motor
Model Number
WDP12S2AHC
HP
1/2
RPM
1800
Volts
208-230/460
SF
1.15
Frame
56HC
Full Load Amps
2.0-1.9/0.9
"C" Dim.
12.2
Apx. Wt. (lb)
30
Full Load Efficiency
78.5
Phase
Three
Motor Mount
Footed
Enclosure
TENV
Type
Three Phase Paint Free Washdown Motor
Motor Face
C-Face

  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
