U.S. Motors

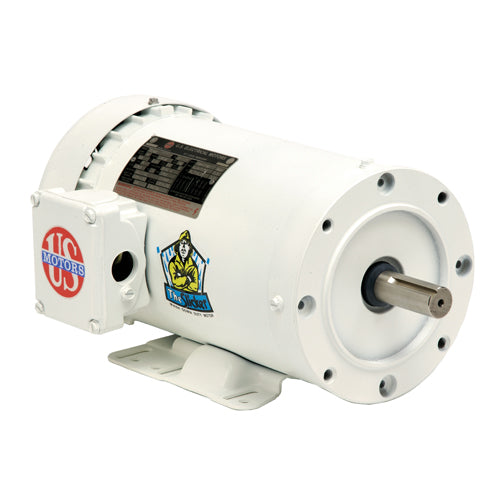

WD5P2DC U.S. Motors Washdown Motor (5 HP, 184TC Frame, C-Face , 1800 RPM)
WD5P2DC U.S. Motors Washdown Motor (5 HP, 184TC Frame, C-Face , 1800 RPM)
No reviews
SKU:WD5P2DC
Regular price
$1,164.01 USD
Regular price
Sale price
$1,164.01 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson WD5P2DC, HP: 5, RPM: 1800, Volts: 208-230/460, Frame: 184TC, "C" Dim. : 16.8, Full Load Efficiency : 89.5, Phase: Three, Motor Mount : Footed, Enclosure: TEFC, Water Proof Motor
| Applications |
| Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. |
| Features |
| Class F Insulation, Class B Rise At Full Load On 60 Hz. Sine Wave Power; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; Moisture Resistant Gasketed Conduit Box With NPT Lead Holes; V-Ring Rotating Shaft Seals; Full 50 & 60 Hertz Operating Data On Nameplate (180-210 Frame); 40C Ambient, NEMA Design B Performance On 60 Hz. Sine Wave Power; Except WD3E2D14 (Design C); Double Contact Sealed Ball Bearings; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Double Dip & Bake On Winding; 303 Stainless Steel Shaft, F1 Assembly Position; Stainless Steel Nameplate; Multiple Stainless Steel T-Type Drains (56 & 140 Frames); Removable Drain Plugs (180 & 210 Frames) |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Painted Washdown Motor |
Model Number |
WD5P2DC |
HP |
5 |
RPM |
1800 |
Volts |
208-230/460 |
SF |
1.15 |
Frame |
184TC |
Full Load Amps |
13.5-12.5/6.2 |
"C" Dim. |
16.8 |
Apx. Wt. (lb) |
87 |
Full Load Efficiency |
89.5 |
Phase |
Three |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Three Phase Painted Washdown Motor |
Motor Face |
C-Face |
