U.S. Motors

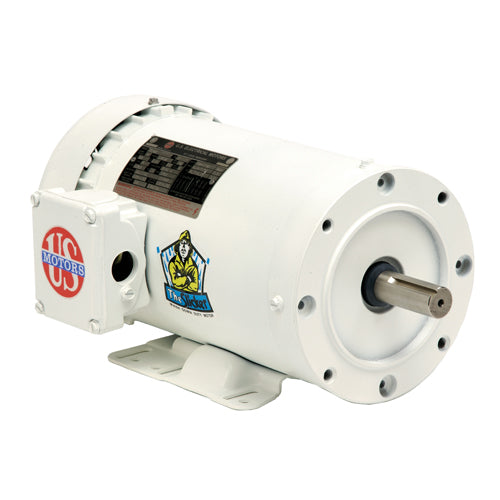

WD3P1A14C U.S. Motors Washdown Motor (3 HP, 145TC Frame, C-Face , 3600 RPM)
WD3P1A14C U.S. Motors Washdown Motor (3 HP, 145TC Frame, C-Face , 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:WD3P1A14C
Regular price
$891.96 USD
Regular price
Sale price
$891.96 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson WD3P1A14C, HP: 3, RPM: 3600, Volts: 208-230/460, Frame: 145TC, "C" Dim. : 14.4, Full Load Efficiency : 85.5, Phase: Three, Motor Mount : Footed, Enclosure: TEFC, Water Proof Motor
| Applications |
| Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors. |
| Features |
| Class F Insulation, Class B Rise At Full Load On 60 Hz. Sine Wave Power; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; Moisture Resistant Gasketed Conduit Box With NPT Lead Holes; V-Ring Rotating Shaft Seals; Full 50 & 60 Hertz Operating Data On Nameplate (180-210 Frame); 40C Ambient, NEMA Design B Performance On 60 Hz. Sine Wave Power; Except WD3E2D14 (Design C); Double Contact Sealed Ball Bearings; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Double Dip & Bake On Winding; 303 Stainless Steel Shaft, F1 Assembly Position; Stainless Steel Nameplate; Multiple Stainless Steel T-Type Drains (56 & 140 Frames); Removable Drain Plugs (180 & 210 Frames) |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Painted Washdown Motor |
Model Number |
WD3P1A14C |
HP |
3 |
RPM |
3600 |
Volts |
208-230/460 |
SF |
1.15 |
Frame |
145TC |
Full Load Amps |
8.8-7.3/3.6 |
"C" Dim. |
14.4 |
Apx. Wt. (lb) |
46 |
Full Load Efficiency |
85.5 |
Phase |
Three |
Motor Mount |
Footed |
Enclosure |
TEFC |
Type |
Three Phase Painted Washdown Motor |
Motor Face |
C-Face |
