U.S. Motors

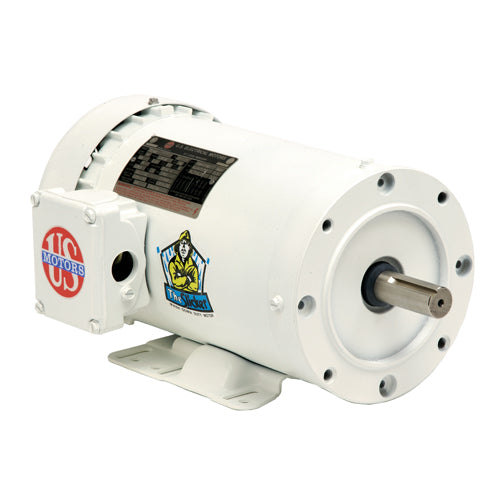

WD34S3A14 U.S. Motors Washdown Motor (3/4 HP, 143T Frame, 1200 RPM)

WD34S3A14 U.S. Motors Washdown Motor (3/4 HP, 143T Frame, 1200 RPM)

WD34S3A14

$626.03 USD
$626.03 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson WD34S3A14, HP: 3/4, RPM: 1200, Volts: 208-230/460, Frame: 143T, "C" Dim. : 13.8, Full Load Efficiency : 78, Phase: Three, Motor Mount : Footed, Enclosure: TENV, Water Proof Motor

Applications
Suitable for food processors, canners, meat packers, bakeries, dairies, drug and cosmetic manufacturers for sanitary, easily cleaned motors.
Features
Class F Insulation, Class B Rise At Full Load On 60 Hz. Sine Wave Power; BISSC Certified, Smooth Design For Easy Cleaning; USDA Approved Non-Toxic White Epoxy Paint; Moisture Resistant Gasketed Conduit Box With NPT Lead Holes; V-Ring Rotating Shaft Seals; Full 50 & 60 Hertz Operating Data On Nameplate (180-210 Frame); 40C Ambient, NEMA Design B Performance On 60 Hz. Sine Wave Power; Except WD3E2D14 (Design C); Double Contact Sealed Ball Bearings; Internal Corrosion Protection On Rotor, Stator, Winding & Frame; Double Dip & Bake On Winding; 303 Stainless Steel Shaft, F1 Assembly Position; Stainless Steel Nameplate; Multiple Stainless Steel T-Type Drains (56 & 140 Frames); Removable Drain Plugs (180 & 210 Frames)

Tech Specs.

Brand
U.S. Motors/Emerson Painted Washdown Motor
Model Number
WD34S3A14
HP
3/4
RPM
1200
Volts
208-230/460
SF
1.15
Frame
143T
Full Load Amps
3.1-3.2/1.6
"C" Dim.
13.8
Apx. Wt. (lb)
35
Full Load Efficiency
78
Phase
Three
Motor Mount
Footed
Enclosure
TENV
Type
Three Phase Painted Washdown Motor
Motor Face
0
