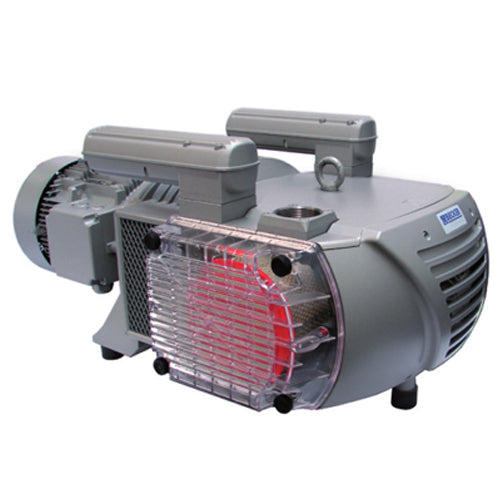

VXLF 500 SK Becker Oil-less Vacuum Pump (22.1 HP, 1150 SCFM)

VXLF 500 SK Becker Oil-less Vacuum Pump (22.1 HP, 1150 SCFM)

👁️ [COUNT] People are currently viewing this product.

VXLF 500 SK

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If you are unable to find the price for this item on our page, please contact us directly for a quote.

Some products require you to ADD TO CART to see the price.

Tax

NY, NJ and CT will be charged tax on most orders.

Sales tax will need to be collected on all AMT and Jorc products, regardless of the destination state.

* If you are tax exempt and would like to place an order, email your tax exempt form to Sales@kgpowersystems.com.

** Taxes may be applied after an order is placed.

Becker Pumps VXLF 500 SK, 100% Oil-less Vacuum Pump , 353 CFM Open Flow, 22.5 Max. Vacuum (in. Hg), 22.1 HP, 1150 SCFM, 1103 Weihgt (lbs.), 83 Max. Vacuum (In. Hg), 12.5 Horsepower (3~/1~),

Applications
The Becker VT series is a line of 100% Oil-less, rotary vane, vacuum pumps. They are designed to operate on a continuous basis throughout a pressure range from atmospheric pressure to 25.5 Inches Hg. The Becker VT vacuum pump is ideal for applications where air is the gas and where the discharge must be totally free of oil. Very low maintenance requirements, long vane life, and low noise levels are key features of these pumps. Applications for the VT pump include graphic arts, robotics and material handling, packaging, air sampling, and paper converting.
Features
100% Oil-less operation
Quiet
Cool operation
Long vane life
Inlet filters included
Discharge silencers
Direct drive
Vacuum regulators included
Minimal maintenance
Continuous duty rated

Tech Specs

Brand
Becker Pumps
Model Number
VXLF 500 SK
Type
100% Oil-less Vacuum Pump
Open Flow
353 CFM
Max. Vacuum (in. Hg)
22.5
HP
22.1
RPM
1150
Weihgt (lbs.)
1103
Noise Level
83
Inlet Size
4
Flow (SCFM @ 0 in. Hg)
174
Horsepower (3~/1~)
12.5
Speed (RPM)
1175
Max. Cont. Vacuum (in. HgV)
27
Noise Level (Max. dBA)
79
Inlet size (BSP, inches)
G-2
Notes
Seep Product Literature

Support Documents (pdf)

Series VXLF 2.200
