Becker Pumps

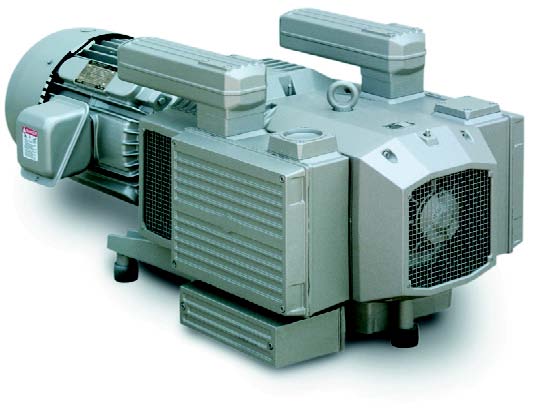

VTLF 500 SK Becker Oil-less Vacuum Pump (22.1HP, 353 SCFM)

VTLF 500 SK Becker Oil-less Vacuum Pump (22.1HP, 353 SCFM)

VTLF 500 SK

$0.00 USD
$0.00 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Becker Pumps VTLF 500 SK, Rotary Vane Oil-less Vacuum Pump , 353 Open Flow, 22.5 Max. Cont. Pressure (PSIG), 22.1/16.5 HP/kW, 353 SCFM, 1150 Speed (RPM), 22.5 Max. Vacuum (In. Hg), 4" Inlet size (BSP, inches),

Applications
The Becker VT series is a line of 100% Oil-less, rotary vane, vacuum pumps. They are designed to operate on a continuous basis throughout a pressure range from atmospheric pressure to 25.5 Inches Hg. The Becker VT vacuum pump is ideal for applications where air is the gas and where the discharge must be totally free of oil. Very low maintenance requirements, long vane life, and low noise levels are key features of these pumps. Applications for the VT pump include graphic arts, robotics and material handling, packaging, air sampling, and paper converting.
Features
100% Oil-less operation
Quiet
Cool operation
Long vane life
Inlet filters included
Discharge silencers
Direct drive
Vacuum regulators included
Minimal maintenance
Continuous duty rated

Tech Specs

Brand
Becker Pumps
Model Number
VTLF 500 SK
Type
Rotary Vane Oil-less Vacuum Pump
Open Flow
353
Max. Cont. Pressure (PSIG)
22.5
HP/kW
22.1/16.5
Flow (SCFM @ 0 In. Hg)
353
Speed (RPM)
1150
Maximum Vacuum (In. Hg)
22.5
Weight (lbs.)w/ motor
1100
Noise Level (Max. DBA)
83
Inlet size (BSP, inches)
4"
Notes
See Product Literature

Support Documents (pdf)

Series VTLF 2.200
