Baldor

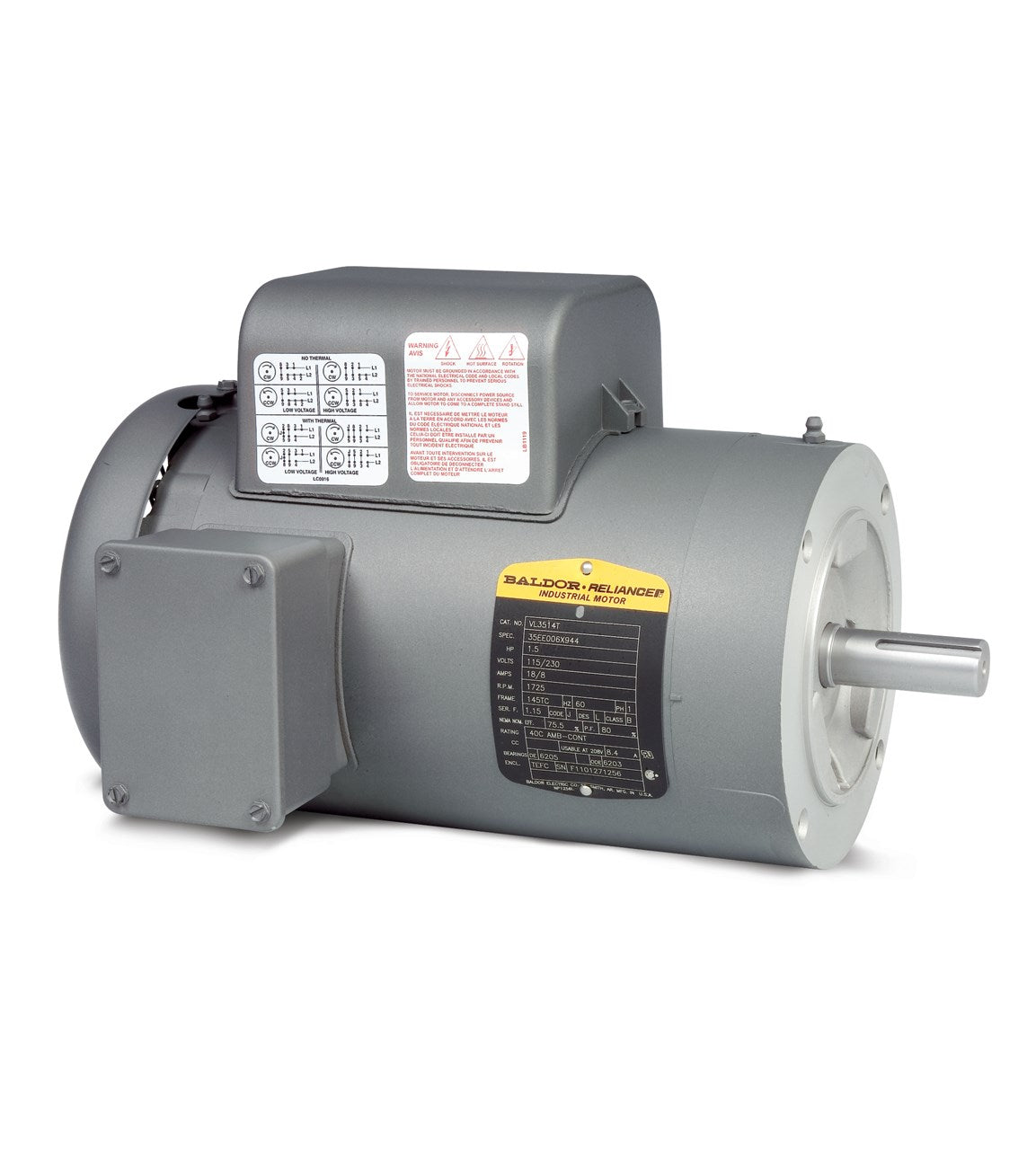

VL3514T Baldor General Purpose Motor (1-1/2 HP, 115/230 Volt, 1800 RPM, C-Face, TEFC Enclosure, 145TC Frame, Footless)
VL3514T Baldor General Purpose Motor (1-1/2 HP, 115/230 Volt, 1800 RPM, C-Face, TEFC Enclosure, 145TC Frame, Footless)
[COUNT] shoppers are looking at this right now
No reviews
SKU:VL3514T
Regular price
$936.47 USD
Regular price
$1,159.00 USD
Sale price
$936.47 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor Motor VL3514T, HP: 1 1/2, RPM: 1800, Volts: 115/230, NEMA Frame : 145TC, "C" Dim : 14.17, Full Load Amps : 8, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, fans, conveyors
| Applications |
| Pumps, fans, conveyors, machine tools, gear reducers and otherapplications requiring a NEMA C-face motor. |
| Features |
| Pressure cast aluminum end plates with ribbed design for rigidity. Ballbearings with a locked drive end bearing, heavy-gauge steel frame, and gasketedconduit box and capacitor cover. |
|
Tech Specs. |
|
|
Brand
|
Baldor General Purpose Industrial Motor
|
|
Model Number
|
VL3514T
|
|
HP
|
1-1/2
|
|
RPM
|
1800
|
|
Volts
|
115/230
|
|
"C" Dim
|
14.17
|
|
NEMA Frame
|
145TC
|
|
Full Load Amps
|
8
|
|
Full Load Efficiency
|
75.5
|
|
Apx. Wt. (lb)
|
47
|
|
EISA Status
|
C
|
|
Phase
|
Single Phase
|
|
Motor Mount
|
Footless
|
|
Enclosure
|
TEFC
|
|
Type
|
Single Phase General Purpose Industrial C-Face Motor
|
