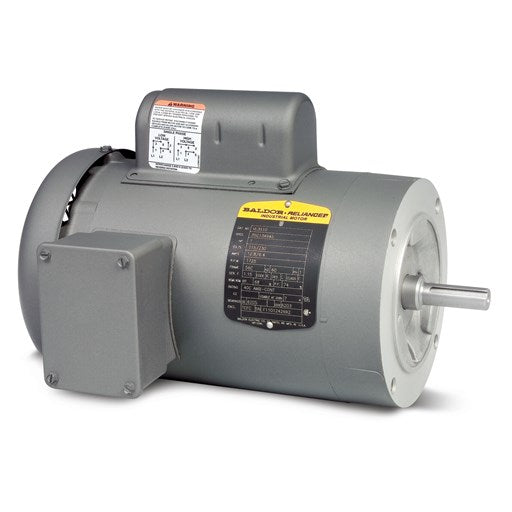

VL3510 Baldor Single Phase C-Face Motor, TEFC, 56C Frame (1 HP, 1800 RPM)

Baldor Motor VL3510, HP: 1, RPM: 1800, Volts: 115/230, NEMA Frame : 56C, "C" Dim : 13.25, Full Load Amps : 6.4, Enclosure: TEFC, Foot Mounted, Motor Applications: Pumps, fans, conveyors

Applications

Pumps, fans, conveyors, machine tools, gear reducers and other applications requiring a NEMA C-face motor.

Features

Pressure cast aluminum end plates with ribbed design for rigidity. Ball bearings with a locked drive end bearing, heavy-gauge steel frame, and gasketed conduit box and capacitor cover.

Tech Specs.
Brand	Baldor General Purpose Industrial Motor
Model Number	VL3510
HP	1
RPM	1800
Volts	115/230
"C" Dim	13.25
NEMA Frame	56C
Full Load Amps	6.4
Full Load Efficiency	68
Apx. Wt. (lb)	38
EISA Status	C
Phase	Single Phase
Motor Mount	Footless
Enclosure	TEFC
Type	Single Phase General Purpose Industrial C-Face Motor
