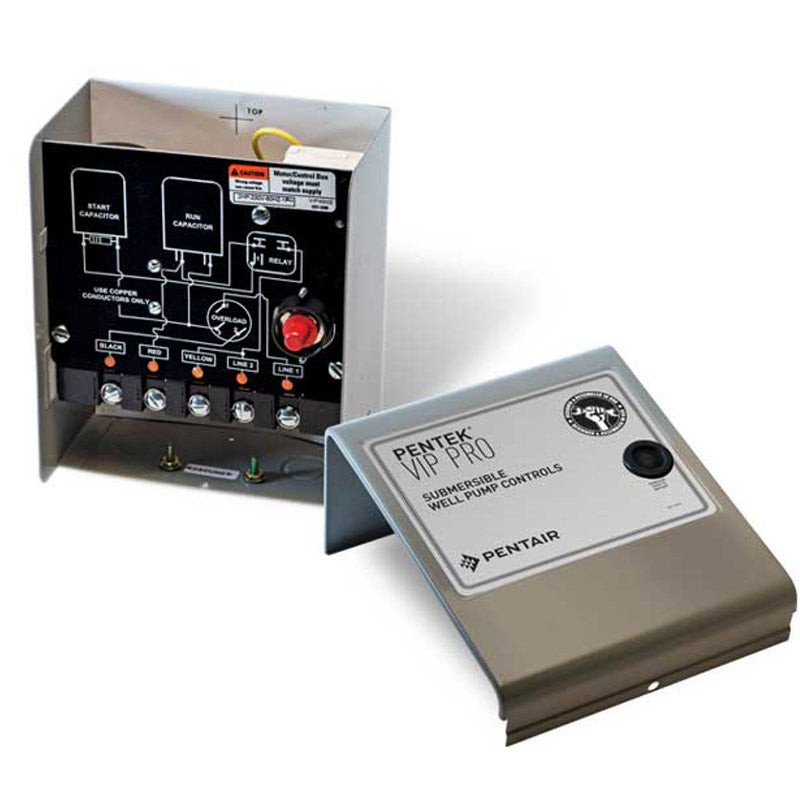

VIP4J02 PENTEK Submersible Pump Control Box (5 HP, 3.7 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure, VIP Pro Series)
VIP4J02 PENTEK Submersible Pump Control Box (5 HP, 3.7 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure, VIP Pro Series)
No reviews
SKU:VIP4J02
Regular price
$439.92 USD
Regular price
Sale price
$439.92 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
PENTEK VIP4J02, 4 Single-Phase Control Boxes Type, VIP Pro Series, 5 HP, 3.7 KW, 230 Voltage, 60 Hz, NEMA 3R/IP24 Enclosure,
| Applications | |
| Pentek VIP Pro Series Controls. Capacitor start, capacitor run designed for the full range of single-phase 1/2, 3/4, 1, 1-1/2, 2, 3 and 5 HP, 3-wire submersible motors | |
| Features | |
| 330 Volt Made in the USA capacitors | |
| Pentek proprietary dielectric control panel board, UL and CSA Certified | |
| Universal controls? designed to work on all manufacturers 3-wire submersible motors | |
| Large wiring area offers generous space to make your wiring connections. Incorporates 1/2, 3/4 and 1 conduit knock-outs | |
| Weather resistant construction NEMA 3R/IP24 rated enclosure for indoor/ outdoor use | |
| Through-the-cover reset overload protection on 1-1/2 through 5 HP models | |
| Control box is functional with the cover removed, offering easier in-the-field troubleshooting | |
| 330 Volt Start Capacitor | |
| *Control boxes are designed to be used on Pentair motors with the same HP and Voltage ratings. Do not use on motors with different ratings. | |
Specifications | |
Brand |
PENTEK |
Catalog Number |
VIP4J02 |
Type |
4 Single-Phase Control Boxes |
Series |
VIP Pro |
HP |
5 |
KW |
3.7 |
Voltage |
230 |
Hz |
60 |
Enclosure Size |
B |
Voltage Relay |
U17-2079 |
Protector |
BET00EE-21 |
Enclosure |
NEMA 3R/IP24 |
Start Capacitor PN |
U17-1437 |
Run Capacitor PN |
U17-1442 |
Type |
CSCR |
Notes |
See Support Documents |
Support Documents (pdf) |
