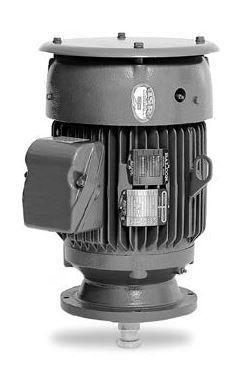

VHECP4106T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor, 256HP Frame, Normal Thrust (20 HP, 3600 RPM)

VHECP4106T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor, 256HP Frame, Normal Thrust (20 HP, 3600 RPM)

👁️ [COUNT] People are currently viewing this product.

VHECP4106T

$5,551.93 USD
$8,444.00 USD $5,551.93 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

Baldor Motor VHECP4106T, HP: 20, RPM: 3600, Volts: 230/460, NEMA Frame : 256HP, "C" Dim : 25.73, Full Load Amps : 23, Enclosure: TEFC, Industrial Pump Motor , Normal Thrust , 1.15

Applications
For normal medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.
Features
Severe duty construction with corrosion-resistant epoxy finish, cast-iron construction, designed for vertical mounting. Rotatable conduit box, stainless steel nameplates, shaft seals. Energy efficient windings. Two lifting lugs for balanced lifting. VHECP motors have NEMA Premium efficiency and are Inverter-Ready. 1.15 Service Factor.

Tech Specs.

Brand
Baldor Premium Efficient Super-E
Model Number
VHECP4106T
HP
20
RPM
3600
Volts
230/460
"C" Dim
25.73
NEMA Frame
256HP
Full Load Amps
23
Full Load Efficiency
92.4
Apx. Wt. (lb)
265
EISA Status
B
Service Factor
1.15
Motor Base
P-Base
Phase
3
Enclosure
TEFC
Thrust
Normal Thrust
