Baldor

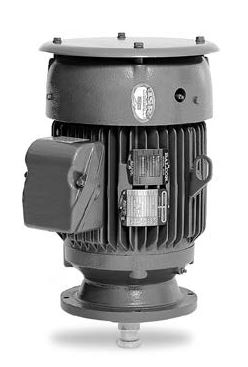

VHECP4103T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor, 284HP Frame, Normal Thrust (25 HP, 1800 RPM)

VHECP4103T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor, 284HP Frame, Normal Thrust (25 HP, 1800 RPM)

SKU:VHECP4103T

Regular price $5,997.29 USD
Regular price Sale price $5,997.29 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

Baldor Motor VHECP4103T, HP: 25, RPM: 1800, Volts: 230/460, NEMA Frame : 284HP, "C" Dim : 30.69, Full Load Amps : 30, Enclosure: TEFC, Industrial Pump Motor , Normal Thrust , 1.15

Applications
For normal medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications.
Features
Severe duty construction with corrosion-resistant epoxy finish, cast-iron construction, designed for vertical mounting. Rotatable conduit box, stainless steel nameplates, shaft seals. Energy efficient windings. Two lifting lugs for balanced lifting. VHECP motors have NEMA Premium efficiency and are Inverter-Ready. 1.15 Service Factor.

Tech Specs.

Brand
Baldor Premium Efficient Super-E
Model Number
VHECP4103T
HP
25
RPM
1800
Volts
230/460
"C" Dim
30.69
NEMA Frame
284HP
Full Load Amps
30
Full Load Efficiency
93.6
Apx. Wt. (lb)
462
EISA Status
B
Service Factor
1.15
Motor Base
P-Base
Phase
3
Enclosure
TEFC
Thrust
Normal Thrust
