Baldor

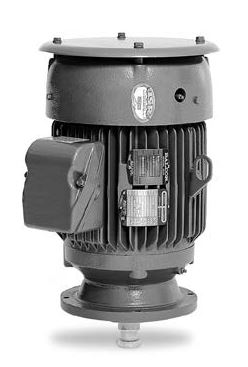

VHECP3771T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor (10 HP, 3600 RPM, 215HP Frame, Normal Thrust)
VHECP3771T Baldor Premium Efficient P-Base Vertical Solid Shaft Pump Motor (10 HP, 3600 RPM, 215HP Frame, Normal Thrust)
[COUNT] shoppers are looking at this right now
No reviews
SKU:VHECP3771T
Regular price
$4,293.31 USD
Regular price
$5,974.00 USD
Sale price
$4,293.31 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Baldor Motor VHECP3771T, HP: 10, RPM: 3600, Volts: 230/460, NEMA Frame : 215HP, "C" Dim : 22.33, Full Load Amps : 11.2, Enclosure: TEFC, Industrial Pump Motor , Normal Thrust , 1.15
| Applications |
| For normal medium and high thrust in-line pump applications. Waste water treatment plants, petro chemical industries, pulp and paper mills and agricultural irrigation applications. |
| Features |
| Severe duty construction with corrosion-resistant epoxy finish, cast-iron construction, designed for vertical mounting. Rotatable conduit box, stainless steel nameplates, shaft seals. Energy efficient windings. Two lifting lugs for balanced lifting. VHECP motors have NEMA Premium efficiency and are Inverter-Ready. 1.15 Service Factor. |
Tech Specs. | |
Brand |
Baldor Premium Efficient Super-E |
Model Number |
VHECP3771T |
HP |
10 |
RPM |
3600 |
Volts |
230/460 |
"C" Dim |
22.33 |
NEMA Frame |
215HP |
Full Load Amps |
11.2 |
Full Load Efficiency |
91.7 |
Apx. Wt. (lb) |
203 |
EISA Status |
B |
Service Factor |
1.15 |
Motor Base |
P-Base |
Phase |
3 |
Enclosure |
TEFC |
Thrust |
Normal Thrust |
