Baldor

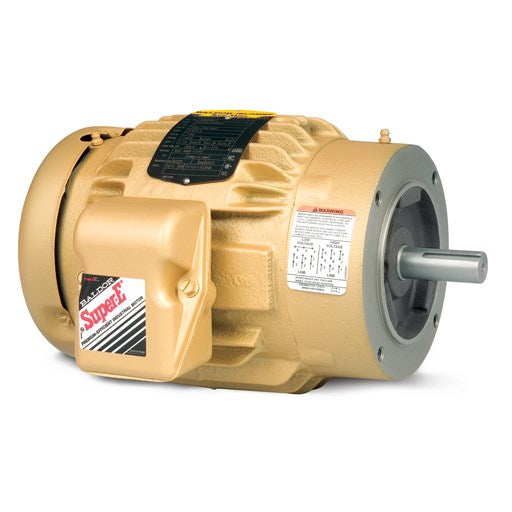

VEM2334T-5 Baldor Motor (20HP, 1770RPM, 575V, 3PH, 60HZ, 256TC, 0960M, TEFC, F)
VEM2334T-5 Baldor Motor (20HP, 1770RPM, 575V, 3PH, 60HZ, 256TC, 0960M, TEFC, F)
No reviews
SKU:VEM2334T-5
Regular price
$3,380.13 USD
Regular price
Sale price
$3,380.13 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
VEM2334T-5 Baldor Motor (20HP, 1770RPM, 575V, 3PH, 60HZ, 256TC, 0960M, TEFC, F)
VEM2334T-5 Baldor Motor (20HP, 1770RPM, 575V, 3PH, 60HZ, 256TC, 0960M, TEFC, F)
VEM2334T-5 Baldor Motor (20HP, 1770RPM, 575V, 3PH, 60HZ, 256TC, 0960M, TEFC, F)
Catalog NumberVEM2334T-5
EnclosureTEFC
Frame256TC
Frame MaterialIron
Frequency60.00 Hz
Motor Letter TypeThree Phase
Output @ Frequency20.000 HP @ 60 HZ
Phase3
Synchronous Speed @ Frequency1800 RPM @ 60 HZ
Voltage @ Frequency575.0 V @ 60 HZ
XP Class and GroupNone
XP DivisionNot Applicable
Agency ApprovalsNEMA_PREMIUM
UR
NEMA PREMIUM
CSA EEV
UR
NEMA PREMIUM
CSA EEV
Ambient Temperature40 °C
Auxillary BoxNo Auxillary Box
Auxillary Box Lead TerminationNone
Base IndicatorNo Mounting
Bearing Grease TypePolyrex EM (-20F +300F)
BlowerNone
Current @ Voltage19.200 A @ 575.0 V
Design CodeA
Drip CoverNo Drip Cover
Duty RatingCONT
Efficiency @ 100% Load93.0 %
Electrically Isolated BearingNot Electrically Isolated
Feedback DeviceNO FEEDBACK
Front Face CodeStandard
Front Shaft IndicatorNone
Heater IndicatorNo Heater
High Voltage Full Load Amps19.2 a
Insulation ClassF
Inverter CodeInverter Ready
KVA CodeJ
Lifting LugsStandard Lifting Lugs
Locked Bearing IndicatorLocked Bearing
Motor Lead ExitKo Box
Motor Lead Quantity/Wire Size3 @ 10 AWG
Motor Lead TerminationFlying Leads
Motor StandardsNEMA
Motor Type0960M
Mounting ArrangementF1
Number of Poles4
Overall Length23.86 IN
Power Factor83
Product FamilyGeneral Purpose
Pulley End Bearing TypeBall
Pulley Face CodeC-Face
Pulley Shaft IndicatorStandard
Rodent ScreenNone
Service Factor1.15
Shaft Diameter1.625 IN
Shaft Extension LocationPulley End
Shaft Ground IndicatorNo Shaft Grounding
Shaft RotationReversible
Shaft Slinger IndicatorShaft Slinger
Speed1770 rpm
Speed CodeSingle Speed
Starting MethodDirect on line
Thermal Device - BearingNone
Thermal Device - WindingNone
Vibration Sensor IndicatorNo Vibration Sensor
Winding Thermal 1None
Winding Thermal 2None
