Century

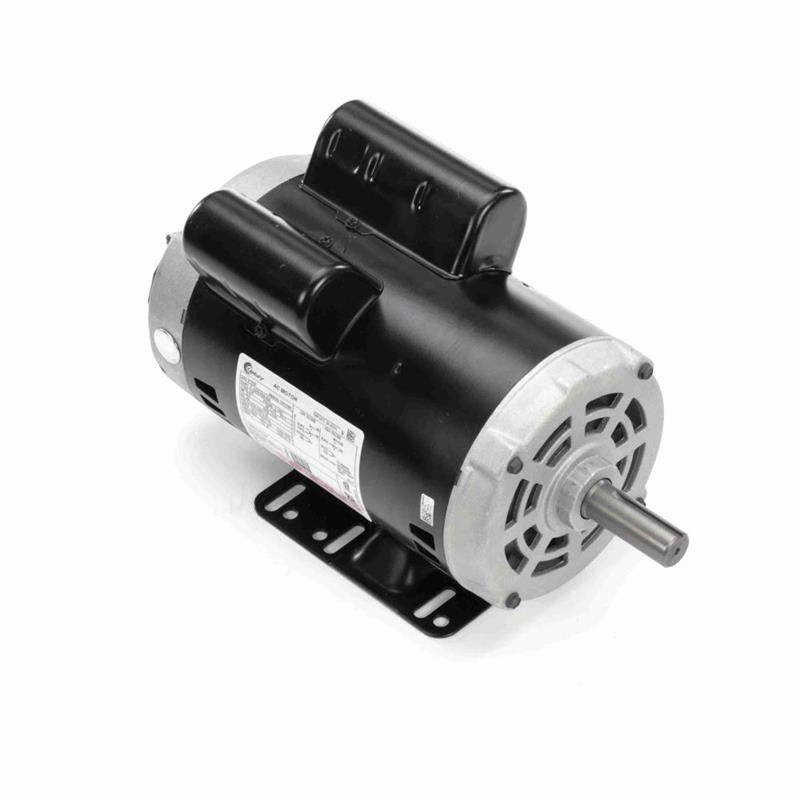

V102 Century Motors General Purpose Motor (2HP, Y145T Frame, ODP, 1 Phase, 208-230/115V, Continuous Duty)

Name: V102 Century Motors General Purpose Motor (2HP, Y145T Frame, ODP, 1 Phase, 208-230/115V, Continuous Duty)
Brand: Century
SKU: V102
Price: 663.36 USD
Availability: InStock

SKU:V102

$663.36 USD

Sale Sold out

Shipping calculated at checkout.

Quantity

Don't see the price?

If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.

V102 Century Motors General Purpose Motor (2HP, Y145T Frame, ODP, 1 Phase, 208-230/115V, Continuous Duty)

Electrical Type Capacitor Start, Capacitor Run, Single Or Dual Voltage
HP 2.0
KW 1.5
Frame Y145T
Enclosure Drip Proof
Phase 1
Voltage 208-230/115
Rotation Reversible Counterclockwise
Overload None
Material Rolled Steel
Bearings Type Ball / Ball
Mounting Rigid Base
Amperage 10.0-10.2/20.4
Bearings SE Type Ball
Shaft Type Keyed
Shaft Diameter 0.875
Bearings OSE Type Ball
Shaft Extension 2.310"
Bearings DE Type Ball
Bearings ODE Type Ball
CE N
CSA Y
UL Recognized
Length 17.00
Width 11.00
Height 11.00
Weight 42.00
Country of Origin Mexico
CENTURY 355302

Questions about this product? Contact our team!
Product images may be generic.
