U.S. Motors

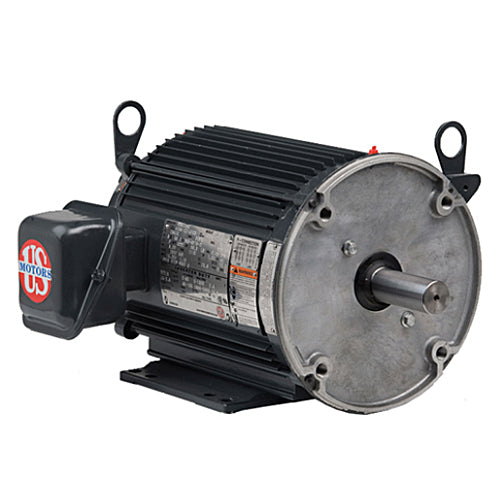

UN7T2BC U.S. Motors Vector Duty Motor (7-1/2 HP, 230/460 Volts, 3600 Max RPM)
UN7T2BC U.S. Motors Vector Duty Motor (7-1/2 HP, 230/460 Volts, 3600 Max RPM)
SKU:UN7T2BC
Regular price
$1,219.15 USD
Regular price
Sale price
$1,219.15 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
US Motors Emerson UN7T2BC HP: 7-1/2, Max RPM: 3600, Base RPM: 1800, Volts: 230/460, Frame: 213TC, Enclosure: TENV, Full Load Amps: 18.8/9.4, ACCU-Torq (TENV) Vector Duty, C-Face, 2000:1 Constant Torque
| Applications | |
| For use with inverters and in vector drive applications. Particularly suited for applications up to a 2000:1 constant torque speed range. Typical applications: machine tools, material handling, packaging machines, test equipment, and other industrial machinery. | |
| Features | |
| Constant Torque Operation from Zero to Base Speed with Vector Drives | Constant HP Operation to Twice Base Speed (Except Where Noted) |
| Continuous Duty at 40C Ambient | Optimized for Operation with IGBT and Intelligent-Power-Module Drives |
| (NEMA Design-A) | Class F Insulation |
| Normally Closed Thermostats Standard (One Per Phase) | Shaft Grounding Ring Option on All Ratings |
| F-1 Standard, Field Convertible to F-2 for 180 Frame and Above | Removable Base 180 Frame and Above |
| Steel 56-140 Frame; Aluminum 180 Frame & Above | Encoder and Brake Provision on All Ratings, See Page 101 |
Tech Specs | |
Brand |
U.S. Motors |
Model Number |
UN7T2BC |
HP |
7-1/2 |
Max RPM |
3600 |
Base RPM |
1800 |
Volts |
230/460 |
Frame |
213TC |
"C" Dim. (in.) |
20 |
Enclosure |
TENV |
Apx. Wt. (lb) |
125 |
Full Load Amps |
18.8/9.4 |
Rated Torque (lb.-in.) |
266.4 |
Inertia (ib.-in.-sec2) |
0.359 |
Constant Torque |
2000:1 |
Type |
Vector Duty |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
