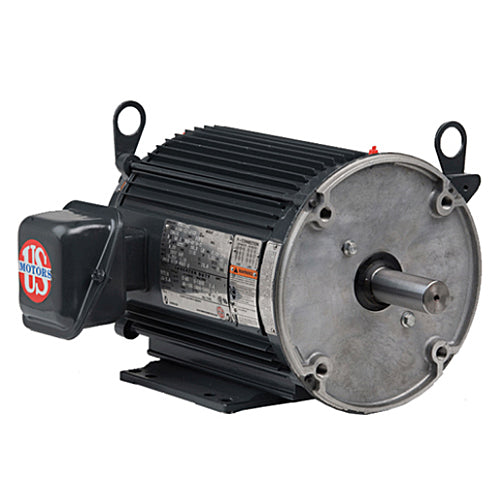

UN2T2GC U.S. Motors Vector Duty Motor (2 HP, 575 Volts, 3600 Max RPM)
UN2T2GC U.S. Motors Vector Duty Motor (2 HP, 575 Volts, 3600 Max RPM)
[COUNT] shoppers are looking at this right now
No reviews
SKU:UN2T2GC
Regular price
$626.66 USD
Regular price
$0.00 USD
Sale price
$626.66 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If you are unable to find the price for this item on our page, please contact us directly for a quote.
Some products require you to ADD TO CART to see the price.
Tax
Tax
NY, NJ and CT will be charged tax on most orders.
* If you are tax exempt, email your tax form to Sales@kgpowersystems.com
US Motors Emerson UN2T2GC HP: 2, Max RPM: 3600, Base RPM: 1800, Volts: 575, Frame: 145TC, Enclosure: TENV, Full Load Amps: 2.2, ACCU-Torq (TENV) Vector Duty, C-Face, 2000:1 Constant Torque
| Applications | |
| For use with inverters and in vector drive applications. Particularly suited for applications up to a 2000:1 constant torque speed range. Typical applications: machine tools, material handling, packaging machines, test equipment, and other industrial machinery. | |
| Features | |
| Constant Torque Operation from Zero to Base Speed with Vector Drives | Constant HP Operation to Twice Base Speed (Except Where Noted) |
| Continuous Duty at 40C Ambient | Optimized for Operation with IGBT and Intelligent-Power-Module Drives |
| (NEMA Design-A) | Class F Insulation |
| Normally Closed Thermostats Standard (One Per Phase) | Shaft Grounding Ring Option on All Ratings |
| F-1 Standard, Field Convertible to F-2 for 180 Frame and Above | Removable Base 180 Frame and Above |
| Steel 56-140 Frame; Aluminum 180 Frame & Above | Encoder and Brake Provision on All Ratings, See Page 101 |
Tech Specs | |
Brand |
U.S. Motors |
Model Number |
UN2T2GC |
HP |
2 |
Max RPM |
3600 |
Base RPM |
1800 |
Volts |
575 |
Frame |
145TC |
"C" Dim. (in.) |
15.5 |
Enclosure |
TENV |
Apx. Wt. (lb) |
53 |
Full Load Amps |
2.2 |
Rated Torque (lb.-in.) |
72 |
Inertia (ib.-in.-sec2) |
0.065 |
Constant Torque |
2000:1 |
Type |
Vector Duty |
Notes |
See Product Literature |
Support Documents (pdf) | ||||
| Product Literature | ||||
