U.S. Motors

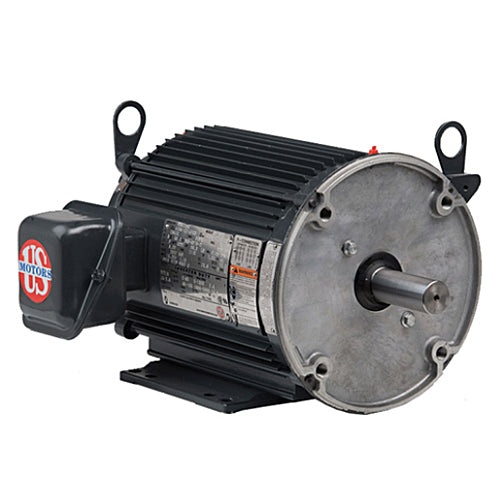

UN1T2GC U.S. Motors Vector Duty Motor (1 HP, 575 Volts, 3600 Max RPM)

UN1T2GC U.S. Motors Vector Duty Motor (1 HP, 575 Volts, 3600 Max RPM)

UN1T2GC

$603.39 USD
$603.39 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson UN1T2GC HP: 1, Max RPM: 3600, Base RPM: 1800, Volts: 575, Frame: 56C, Enclosure: TENV, Full Load Amps: 1.3, ACCU-Torq (TENV) Vector Duty, C-Face, 2000:1 Constant Torque

Applications
For use with inverters and in vector drive applications. Particularly suited for applications up to a 2000:1 constant torque speed range. Typical applications: machine tools, material handling, packaging machines, test equipment, and other industrial machinery.
Features
Constant Torque Operation from Zero to Base Speed with Vector Drives Constant HP Operation to Twice Base Speed (Except Where Noted)
Continuous Duty at 40C Ambient Optimized for Operation with IGBT and Intelligent-Power-Module Drives
(NEMA Design-A) Class F Insulation
Normally Closed Thermostats Standard (One Per Phase) Shaft Grounding Ring Option on All Ratings
F-1 Standard, Field Convertible to F-2 for 180 Frame and Above Removable Base 180 Frame and Above
Steel 56-140 Frame; Aluminum 180 Frame & Above Encoder and Brake Provision on All Ratings, See Page 101

Tech Specs

Brand
U.S. Motors
Model Number
UN1T2GC
HP
1
Max RPM
3600
Base RPM
1800
Volts
575
Frame
56C
"C" Dim. (in.)
14.4
Enclosure
TENV
Apx. Wt. (lb)
36
Full Load Amps
1.3
Rated Torque (lb.-in.)
36
Inertia (ib.-in.-sec2)
0.04
Constant Torque
2000:1
Type
Vector Duty
Notes
See Product Literature
