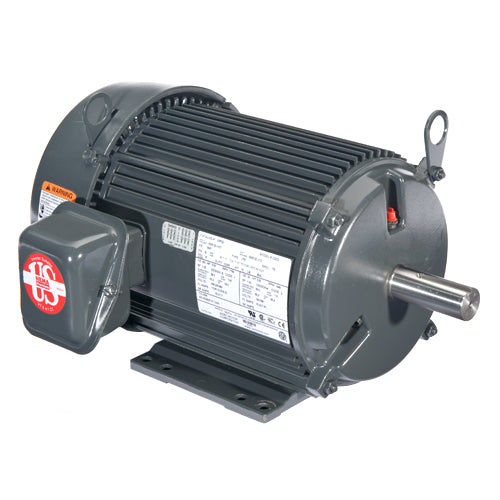

U7D10C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (7-1/2 HP, 460 V, 3 phase, 254T Frame)

U7D10C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (7-1/2 HP, 460 V, 3 phase, 254T Frame)

[COUNT] shoppers are looking at this right now

U7D10C

$2,987.37 USD
$0.00 USD $2,987.37 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors U7D10C, Definite Purpose UNIMOUNT Multispeed Motor Type, 7 1/2 (5) HP (HP-Low), 1800/1200 RPM/RPM-Low, 460 Voltage, Three Phase, 254T Frame, Constant Torque,

Applications
US Motors Definite Purpose Three Phase, UNIMOUNTTotally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed.
Features
Class F Insulation
Extruded Aluminum Frame (140: Rolled Steel)
Aluminum End Shields With Steel Bearing Inserts
Regreasable Bearings 250 Frame & Up
Double Shielded Bearings
Removable Base 180 Frame & Up
Lifting Provisions 180 Frame & Up
Conversion Kits: C&D Flanges
1.0 Service Factor Or Higher
Variable Torque, 1800/900 RPM, One Winding

Specifications

Brand
U.S. Motors
Catalog Number
U7D10C
Type
Definite Purpose UNIMOUNT Multispeed Motor
HP (HP-Low)
7 1/2 (5)
RPM/RPM-Low
1800/1200
Voltage
460
Phase
Three
Frame
254T
SF
1.25
"C" Dim. (inches)
23.9
Full Load Eff.
84
Full load Amps
10.1
Torque
Constant
Winding
Two
Enclosure
TEFC
Notes
See Support Documents
