U.S. Motors

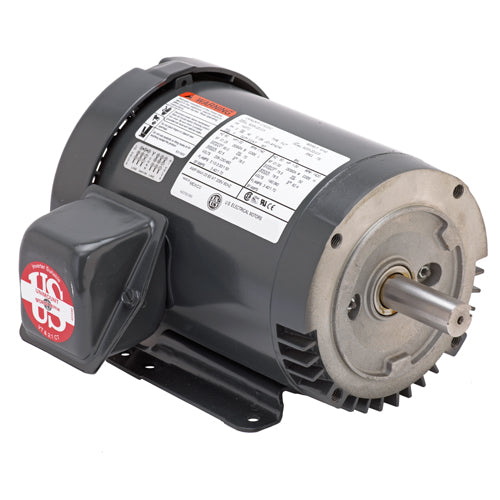

U5P1DK U.S. Motors General Purpose Motor (5 HP, 184TCH Frame, Three Phase, 3600 RPM)
U5P1DK U.S. Motors General Purpose Motor (5 HP, 184TCH Frame, Three Phase, 3600 RPM)
👁️
[COUNT] People are currently viewing this product.
No reviews
SKU:U5P1DK
Regular price
$846.77 USD
Regular price
Sale price
$846.77 USD
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Don't see the price?
Don't see the price?
If the item's price is not displayed on this page, you might need to contact us for a quote or add the item to your cart to see the price.
US Motors Emerson U5P1DK, HP: 5, RPM: 3600, Volts: 208-230/460, "C" Dim: 16.9, Frame: 184TCH, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps
| Applications |
| For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments. |
| Features |
| Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-210), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up |
Tech Specs. | |
Brand |
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor |
Model Number |
U5P1DK |
HP |
5 |
RPM |
3600 |
Volts |
208-230/460 |
"C" Dim |
16.9 |
Frame |
184TCH |
Full Load Amps |
13.4-12.2/6.1 |
Full Load Efficiency |
89.5 |
Apx. Wt. (lb) |
70 |
SF |
1.25 |
Phase |
Three |
Motor Mount |
Foot Mounted |
Enclosure |
TEFC |
Type |
General Purpose Industrial Motor |
Share
- Questions about this product? Contact our team!
- This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
- ALL IMAGES SHOWN ON OUR WEBSITE ARE FOR ILLUSTRATION PURPOSE ONLY AND MAY NOT BE AN EXACT REPRESENTATION OF THE PRODUCT. ACTUAL PRODUCTS MAY VARY FROM THE IMAGES SHOWN.
