U.S. Motors

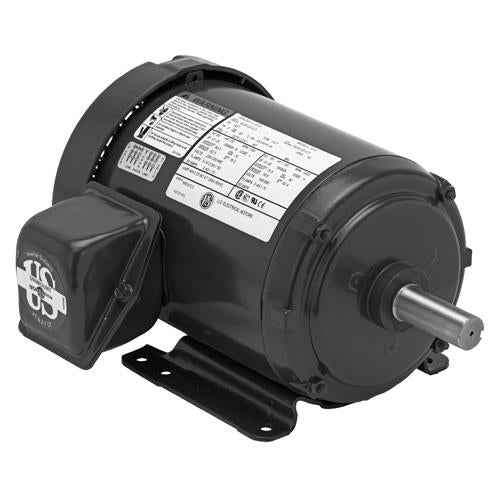

U3P2D U.S. Motors General Purpose Motor (3 HP, 182T Frame, 208-230/460 Volt, Three Phase, 1800 RPM, TEFC Enclosure, Foot Mounted)
U3P2D U.S. Motors General Purpose Motor (3 HP, 182T Frame, 208-230/460 Volt, Three Phase, 1800 RPM, TEFC Enclosure, Foot Mounted)
[COUNT] shoppers are looking at this right now
No reviews
SKU:U3P2D
Regular price
$585.59 USD
Regular price
$0.00 USD
Sale price
$585.59 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson U3P2D, HP: 3, RPM: 1800, Volts: 208-230/460, "C" Dim: 60, Frame: 182T, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps
| Applications |
| For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment. |
| Features |
| Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266 |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
|
|
Model Number
|
U3P2D
|
|
HP
|
3
|
|
RPM
|
1800
|
|
Volts
|
208-230/460
|
|
"C" Dim
|
60
|
|
Frame
|
182T
|
|
Full Load Amps
|
8.4-7.8/3.9
|
|
Full Load Efficiency
|
89.5
|
|
Apx. Wt. (lb)
|
89.5
|
|
SF
|
1.25
|
|
Phase
|
Three
|
|
Motor Mount
|
Foot Mounted
|
|
Enclosure
|
TEFC
|
|
Type
|
General Purpose Industrial Motor
|
