U.S. Motors

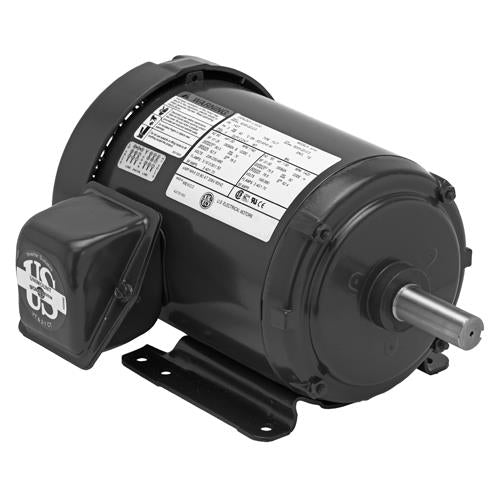

U32P3G U.S. Motors General Purpose Motor (1 1/2 HP, 182T Frame, Three Phase, 1200 RPM)

U32P3G U.S. Motors General Purpose Motor (1 1/2 HP, 182T Frame, Three Phase, 1200 RPM)

U32P3G

$710.23 USD
$710.23 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson U32P3G, HP: 1 1/2, RPM: 1200, Volts: 575, "C" Dim: 16.1, Frame: 182T, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment.
Features
Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
U32P3G
HP
1 1/2
RPM
1200
Volts
575
"C" Dim
16.1
Frame
182T
Full Load Amps
1.8
Full Load Efficiency
87.5
Apx. Wt. (lb)
60
SF
1.25
Phase
Three
Motor Mount
Foot Mounted
Enclosure
TEFC
Type
General Purpose Industrial Motor
