U.S. Motors

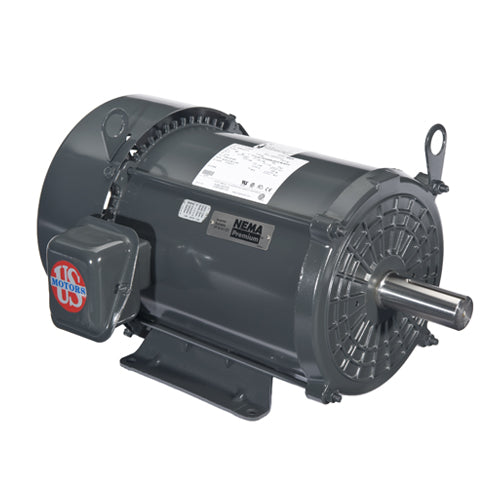

U2P1G Nidec U.S. Motors General Purpose Motor (2 HP, 145T Frame, 575 Volt, Three Phase, 3500 RPM, TEFC Enclosure, Footed)
U2P1G Nidec U.S. Motors General Purpose Motor (2 HP, 145T Frame, 575 Volt, Three Phase, 3500 RPM, TEFC Enclosure, Footed)
[COUNT] shoppers are looking at this right now
No reviews
SKU:U2P1G
Regular price
$476.28 USD
Regular price
$0.00 USD
Sale price
$476.28 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
US Motors Emerson U2P1G, HP: 2, RPM: 3600, Volts: 575, "C" Dim: 12.8, Frame: 145T, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps
| Applications |
| For general industrial equipment including fans, blowers, compressors, pumps and direct connected equipment. |
| Features |
| Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-140), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up, Conversion Kits: Drip Cover & Brakes (56-210 Frame), See Pages 263-266 |
|
Tech Specs. |
|
|
Brand
|
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
|
|
Model Number
|
U2P1G
|
|
HP
|
2
|
|
RPM
|
3500
|
|
Volts
|
575
|
|
"C" Dim
|
12.8
|
|
Frame
|
145T
|
|
Full Load Amps
|
2
|
|
Full Load Efficiency
|
85.5
|
|
Apx. Wt. (lb)
|
40
|
|
SF
|
1.25
|
|
Phase
|
Three
|
|
Motor Mount
|
Foot Mounted
|
|
Enclosure
|
TEFC
|
|
Type
|
General Purpose Industrial Motor
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
