U.S. Motors

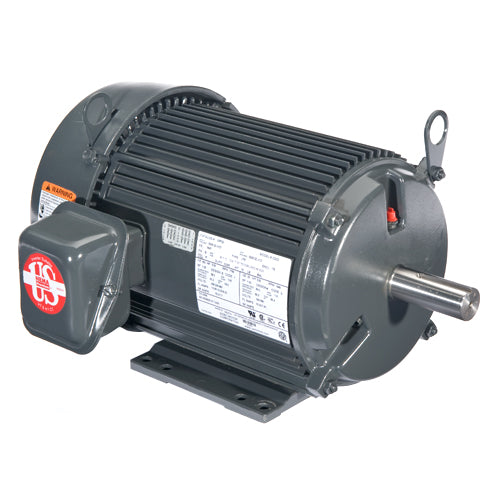

U2L9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (2 HP, 460 Voltage, Three Phase)
U2L9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (2 HP, 460 Voltage, Three Phase)
No reviews
SKU:U2L9C
Regular price
$703.38 USD
Regular price
Sale price
$703.38 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors U2L9C, Definite Purpose UNIMOUNT Multispeed Motor Type, 2 (1/2) HP (HP-Low), 1800/900 RPM/RPM-Low, 460 Voltage, Three Phase, 145T Frame, Variable Torque,
| Applications | |
| US Motors Definite Purpose Three Phase, UNIMOUNT Totally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed. | |
| Features | |
| Class F Insulation | |
| Extruded Aluminum Frame (140: Rolled Steel) | |
| Aluminum End Shields With Steel Bearing Inserts | |
| Regreasable Bearings 250 Frame & Up | |
| Double Shielded Bearings | |
| Removable Base 180 Frame & Up | |
| Lifting Provisions 180 Frame & Up | |
| Conversion Kits: C&D Flanges | |
| 1.0 Service Factor Or Higher | |
| Variable Torque, 1800/900 RPM, One Winding | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
U2L9C |
Type |
Definite Purpose UNIMOUNT Multispeed Motor |
HP (HP-Low) |
2 (1/2) |
RPM/RPM-Low |
1800/900 |
Voltage |
460 |
Phase |
Three |
Frame |
145T |
SF |
1.25 |
"C" Dim. (inches) |
13.8 |
Full Load Eff. |
81.5 |
Full load Amps |
3 |
Torque |
Variable |
Winding |
One |
Enclosure |
TEFC |
Phase |
Three |
Notes |
See Support Documents |
Support Documents (pdf) |
