U.S. Motors

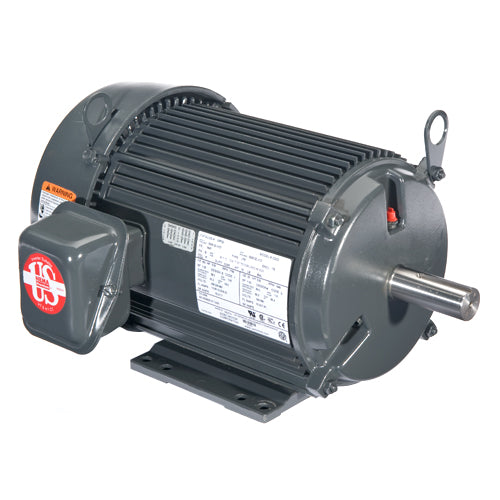

U2D10C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (2 HP, 460 V, 3 phase, 184T Frame)
U2D10C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (2 HP, 460 V, 3 phase, 184T Frame)
SKU:U2D10C
Regular price
$1,238.39 USD
Regular price
Sale price
$1,238.39 USD
Unit price
/
per
Shipping calculated at checkout.
Don't see the price?
Don't see the price?
Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.
Couldn't load pickup availability
U.S. Motors U2D10C, Definite Purpose UNIMOUNT Multispeed Motor Type, 2 (1-1/3) HP (HP-Low), 1800/1200 RPM/RPM-Low, 460 Voltage, Three Phase, 184T Frame, Constant Torque,
| Applications | |
| US Motors Definite Purpose Three Phase, UNIMOUNTTotally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed. | |
| Features | |
| Class F Insulation | |
| Extruded Aluminum Frame (140: Rolled Steel) | |
| Aluminum End Shields With Steel Bearing Inserts | |
| Regreasable Bearings 250 Frame & Up | |
| Double Shielded Bearings | |
| Removable Base 180 Frame & Up | |
| Lifting Provisions 180 Frame & Up | |
| Conversion Kits: C&D Flanges | |
| 1.0 Service Factor Or Higher | |
| Variable Torque, 1800/900 RPM, One Winding | |
Specifications | |
Brand |
U.S. Motors |
Catalog Number |
U2D10C |
Type |
Definite Purpose UNIMOUNT Multispeed Motor |
HP (HP-Low) |
2 (1-1/3) |
RPM/RPM-Low |
1800/1200 |
Voltage |
460 |
Phase |
Three |
Frame |
184T |
SF |
1.25 |
"C" Dim. (inches) |
16.9 |
Full Load Eff. |
77 |
Full load Amps |
3.4 |
Torque |
Constant |
Winding |
Two |
Enclosure |
TEFC |
Notes |
See Support Documents |
Support Documents (pdf) | ||||
