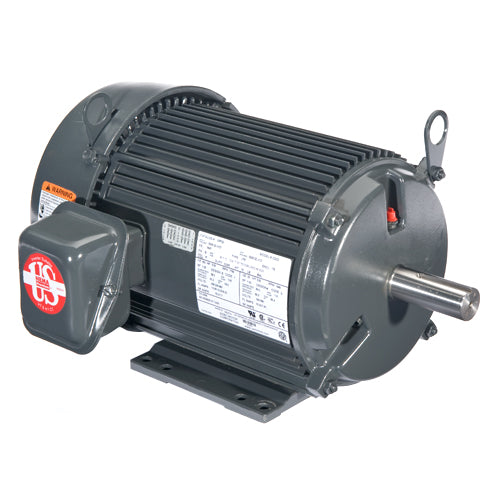

U25L9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (25 HP, 460 Voltage, Three Phase)

U25L9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (25 HP, 460 Voltage, Three Phase)

[COUNT] shoppers are looking at this right now

U25L9C

$4,356.44 USD
$0.00 USD $4,356.44 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors U25L9C, Definite Purpose UNIMOUNT Multispeed Motor Type, 25/ (6-1/4) HP (HP-Low), 1800/900 RPM/RPM-Low, 460 Voltage, Three Phase, 286T Frame, Variable Torque,
Applications
US Motors Definite Purpose Three Phase, UNIMOUNT Totally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed.
Features
Class F Insulation
Extruded Aluminum Frame (140: Rolled Steel)
Aluminum End Shields With Steel Bearing Inserts
Regreasable Bearings 250 Frame & Up
Double Shielded Bearings
Removable Base 180 Frame & Up
Lifting Provisions 180 Frame & Up
Conversion Kits: C&D Flanges
1.0 Service Factor Or Higher
Variable Torque, 1800/900 RPM, One Winding

Specifications

Brand
U.S. Motors
Catalog Number
U25L9C
Type
Definite Purpose UNIMOUNT Multispeed Motor
HP (HP-Low)
25/ (6-1/4)
RPM/RPM-Low
1800/900
Voltage
460
Phase
Three
Frame
286T
SF
1.15
"C" Dim. (inches)
28.3
Full Load Eff.
87.5
Full load Amps
30
Torque
Variable
Winding
One
Enclosure
TEFC
Phase
Three
Notes
