U.S. Motors

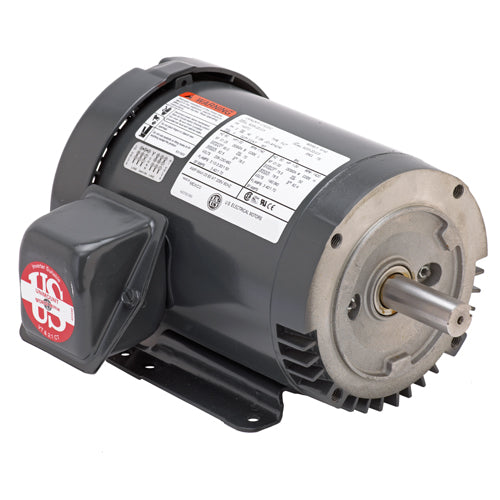

U15P1DC U.S. Motors General Purpose Motor (15 HP, 254TC Frame, Three Phase, 3600 RPM)

U15P1DC U.S. Motors General Purpose Motor (15 HP, 254TC Frame, Three Phase, 3600 RPM)

U15P1DC

$1,918.92 USD
$1,918.92 USD
Sale Sold out
Shipping calculated at checkout.

Don't see the price?

Certain manufacturers require online sellers to display a price that meets or surpasses the manufacturer's set MAP (Minimum Advertised Price). As we are providing a price lower than the MAP, please Add the Product to Your Cart for pricing details or Request a Quote.

US Motors Emerson U15P1DC, HP: 15, RPM: 3600, Volts: 208-230/460, "C" Dim: 23.9, Frame: 254TC, Phase: Three, Motor Mount: Foot Mounted, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments.
Features
Class F Insulation, Class B Rise at Full Load On 60 Hertz Sine Wave Power, Aluminum Frame (180-280), Rolled Steel (56-210), "CE" Mark on Nameplate (140 Frame & Larger), Shaft Slinger on Pulley End, Full 50 & 60 Hertz Operating Data on Nameplate (03), Full HP @ 50 Hz, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, Regreasable Shaft-End Bearings 180 Frame & Up, Sealed Bearings 56-140 Frame, Double Shielded 180-280 Frame, Suitable for Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable for Part Winding Start (PWS) on Low Voltage, Lifting Provisions 180 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Premium Efficient General Purpose Industrial Motor
Model Number
U15P1DC
HP
15
RPM
3600
Volts
208-230/460
"C" Dim
23.9
Frame
254TC
Full Load Amps
39-35/17.7
Full Load Efficiency
91
Apx. Wt. (lb)
210
SF
1.15
Phase
Three
Motor Mount
Foot Mounted
Enclosure
TEFC
Type
General Purpose Industrial Motor
