U.S. Motors

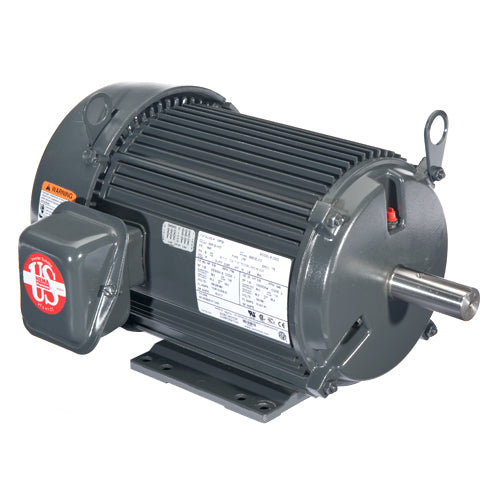

U10R9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (10 HP, 460 V, 3 Phase)

U10R9C U.S. Motors Definite Purpose UNIMOUNT Multispeed Motor (10 HP, 460 V, 3 Phase)

[COUNT] shoppers are looking at this right now

U10R9C

$2,457.68 USD
$0.00 USD $2,457.68 USD
Sale Sold out
Shipping calculated at checkout.

U.S. Motors U10R9C, Definite Purpose UNIMOUNT Multispeed Motor Type, 10 (5) HP (HP-Low), 1800/900 (1) RPM/RPM-Low, 460 Voltage, Three Phase, 256T Frame, Constant Torque,
Applications
US Motors Definite Purpose Three Phase, UNIMOUNT Totally Enclosed Fan Cooled (TEFC) Multi-Speed Motor. For applications requiring more than one standard speed.
Features
Class F Insulation
Extruded Aluminum Frame (140: Rolled Steel)
Aluminum End Shields With Steel Bearing Inserts
Regreasable Bearings 250 Frame & Up
Double Shielded Bearings
Removable Base 180 Frame & Up
Lifting Provisions 180 Frame & Up
Conversion Kits: C&D Flanges
1.0 Service Factor Or Higher
Variable Torque, 1800/900 RPM, One Winding

Specifications

Brand
U.S. Motors
Catalog Number
U10R9C
Type
Definite Purpose UNIMOUNT Multispeed Motor
HP (HP-Low)
10 (5)
RPM/RPM-Low
1800/900 (1)
Voltage
460
Phase
Three
Frame
256T
SF
1
"C" Dim. (inches)
25.6
Full Load Eff.
84
Full load Amps
12.7
Torque
Constant
Winding
One
Enclosure
TEFC
Notes
See Support Documents

Support Documents (pdf)
