U.S. Motors

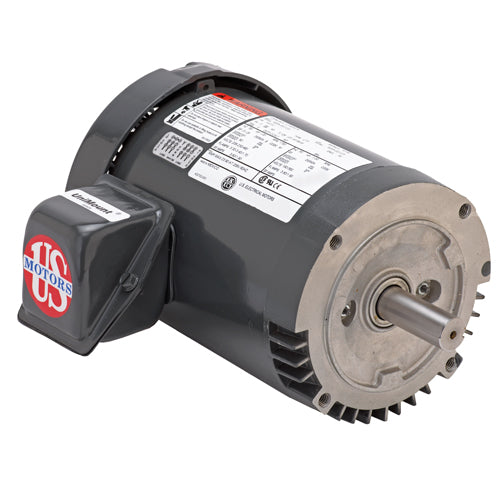

U10E1DCR U.S. Motors General Purpose Motor (10 HP, 215TC Frame, Three Phase, 3600 RPM)

U10E1DCR U.S. Motors General Purpose Motor (10 HP, 215TC Frame, Three Phase, 3600 RPM)

[COUNT] shoppers are looking at this right now

U10E1DCR

$978.94 USD
$0.00 USD $978.94 USD
Sale Sold out
Shipping calculated at checkout.

US Motors Emerson U10E1DCR, HP: 10, RPM: 3600, Volts: 208-230/460, "C" Dim: 20.1, Frame: 215TC, Phase: Three, Motor Mount: Footless, Enclosure: TEFC, Fans, Compressors, Pumps

Applications
For use on pumps, fans, compressors, material handling and other general purpose applications in damp, dusty or dirty environments.
Features
Extruded Aluminum Frame (180-280), Rolled Steel (56-210), Aluminum End Shields With Steel Bearing Inserts, Class F Insulation, Class B Rise At Full Load On 60 Hertz Sine Wave Power, "CE" Mark On Nameplate(140 Frame & Larger), Oversized Diagonally Split Conduit Box, 40C Ambient, NEMA Design B Performance On 60 Hertz Sine Wave Power, 50/60 Hz. On Nameplate (180-280 Frame), Regreasable Shaft-End Bearings (180-280), Sealed Bearings (56-140), Double Shielded (180-280), Suitable For Wye-Delta Start 250 Frame & Larger, Dual Voltage Ratings Suitable For Part Winding Start (PWS) On Low Voltage, Lifting Provisions 180 Frame & Up

Tech Specs.

Brand
U.S. Motors/Emerson Energy Efficient General Purpose Industrial Motor
Model Number
U10E1DCR
HP
10
RPM
3600
Volts
208-230/460
"C" Dim
20.1
Frame
215TC
Full Load Amps
26.7-23.8/11.9
Full Load Efficiency
89.5
Apx. Wt. (lb)
110
SF
1.25
Phase
Three
Motor Mount
Footless
Enclosure
TEFC
Type
General Purpose Industrial Motor

  • Questions about this product? Contact our team!
  • This item is direct shipped from the manufacturer. Lead times will vary. Contact for availability.
  • All images shown on our website are for illustration purpose only and may not be an exact representation of the product. Actual products may vary from the images shown.
