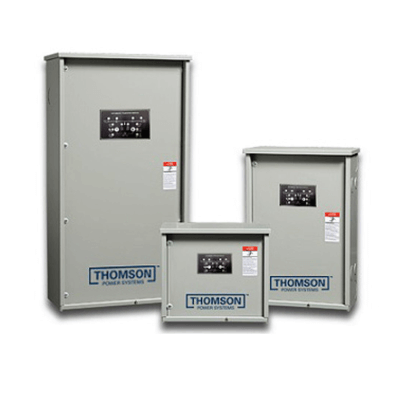

TS923A0100A Thomson Power Systems TS920 Series Automatic Transfer Switch (100 AMPS, 240 Max Voltage, TSC 9 Controller, Nema 1 Enclosure )
TS923A0100A Thomson Power Systems TS920 Series Automatic Transfer Switch (100 AMPS, 240 Max Voltage, TSC 9 Controller, Nema 1 Enclosure )
[COUNT] shoppers are looking at this right now
No reviews
SKU:TS923A0100A
Regular price
$1,974.66 USD
Regular price
$1,803.00 USD
Sale price
$1,974.66 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Thomson Technology TS923A0100A, 100 AMPS, 240 Max Voltage, TSC 9 Controller, Nema 1 Enclosure
| Applications |
| An Automatic Transfer Switch (ATS) is an essential device for ensuring uninterrupted power for commercial & residential application. The TS920 Automatic Transfer Switch offers reliable, seamless power transition for residential and commercial applications. Equipped with a robust power contactor switching unit and advanced TSC 9 microprocessor-based controller, the TS920 automatically detects utility power failures and swiftly connects the system to a backup generator, and once utility power is restored, it automatically reverts the load back to the primary supply. The TS920 ensures a smooth and safe switch between power sources. The TS920 Automatic Transfer Switches employ a power contactor switching unit with a TSC 9 microprocessor- based controller to automatically start a generator and transfer system load to the generator supply in the event of a utility supply failure. System load is automatically re-transferred back to the utility supply following restoration of the utility power source. All load transfer sequences are “Open Transition” (i.e., “break-before-make”) utilizing an in-phase transfer detection control sequence. Service entrance option available. |
| Features |
| 100% Continuous Current Ratings for use with all load types |
| Suitable for Copper and Aluminum power cable connections |
| High Short Circuit Withstand Ratings when used with upstream molded case circuit breakers |
| Fast Operation allows In-Phase Power Transfer |
| Electrical and Mechanical Interlocked mechanism prevents simultaneous closure of Utility and Generator sources |
| Utility service disconnect breaker switch |
| Non-adjustable thermal-magnetic over-current protection on utility |
| Still requires upstream over-current protection for the generator source (not included) |
| Plug-in Control Devices allow quick connections |
| Enclosed Power Contacts for safe operation and maintenance |
|
Specifications |
|
|
Brand
|
Thomson Technology
|
|
Catalog Number
|
TS923A0100A
|
|
Type
|
Automatic Transfer Switch
|
|
Series
|
TS 920
|
|
AMPS
|
100
|
|
Voltage
|
120/208/220/240
|
|
Pole
|
3
|
|
HZ
|
50/ 60
|
|
Controller
|
TSC 9
|
|
Enclosure
|
Nema 1
|
|
Safety Standard
|
UL 1008 , CSA C22.2 No. 178
|
|
Phase
|
Single Phase, 3 wire or 3 Phase, 4 wire
|
|
Weight (Lbs)
|
20
|
